Home / Products / Parking Control /

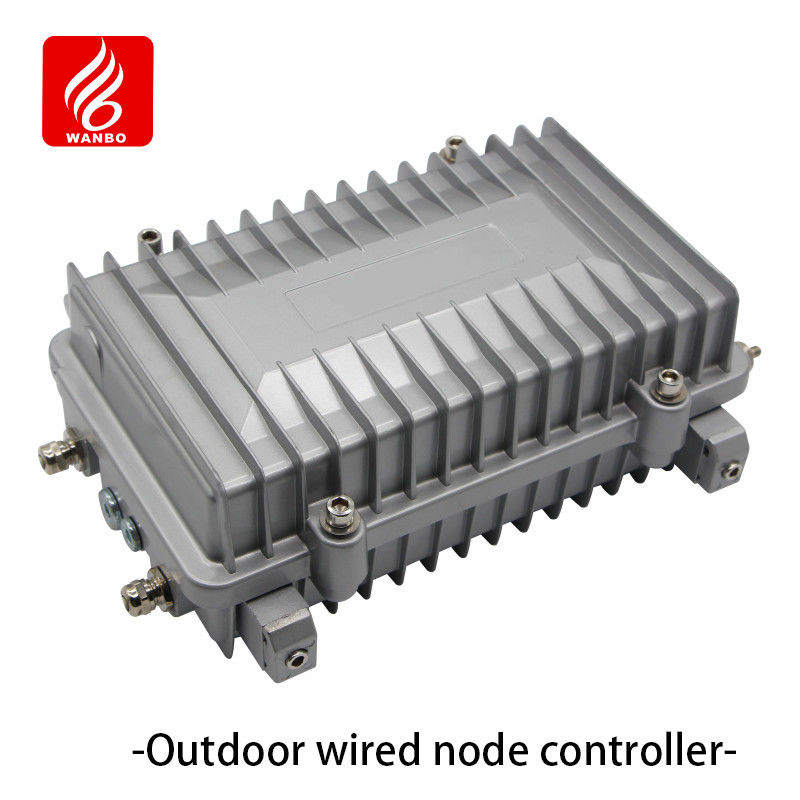

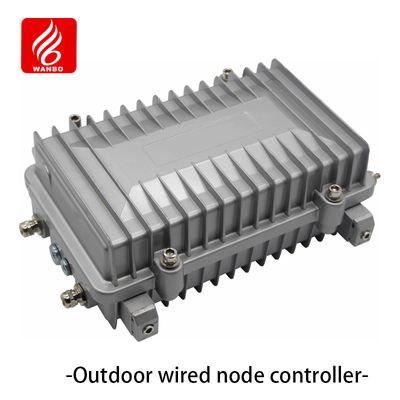

K03N Parking Control Outdoor Wired Node Controller RS485 PGS IP66 Guidance System

Name: K03N Parking Control Outdoor Wired Node Controller RS485 PGS IP66 Guidance System
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-K03N
Price: 330.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-K03N
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Model:

WBP-K03N

Product NW:

5.5kg

Product Temperature:

-40℃～+85℃

Power Dissipation:

≤2 W

Power Supply Mode:

AC 110V～240V

Product Dimension:

300*230*110 Mm

Product Protection:

IP66

Ambient Humidity:

90% RH (no Condensation)

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

Parking Control IP66

RS485 Parking Control

IP66 outdoor node controller

Product Description

Specification

Product Model:	WBP-K03N
Specification and Dimension:	300230110 mm
Net Weight:	5.5 KG
Sheathing Material:	Die-cast aluminum box
Power Dissipation:	≤2 W
Working Temperature:	-40℃～+85℃
Communication Mode:	Road 2 CAN
Communication Distance:	≤1000 m
Working Power Supply:	AC 110～240V
Levels of Protection:	IP66
Node Capacity:	Twenty-five
Ambient Humidity:	90% RH (no condensation)

Product Description

The outdoor node controller aggregates all the parking information within the area's parking facilities, uploads the data encoding to the centralized controller, and receives the available parking information data from the centralized controller, subsequently transmitting it to the outdoor wired zone controller. The outdoor node controller can address the issue of insufficient capacity, and in complex parking lots, it can ensure the stability of system communication.

Product features

Using the international advanced 32-bit ARM processor, full industrial grade design, to ensure the stability and reliability of products;
The whole system controller can be upgraded remotely, convenient for system maintenance and upgrade, always to meet the needs of users;
Using CAN bus industrial grade communication design, signal communication is stable, reliable, transmission distance up to 1 km;
