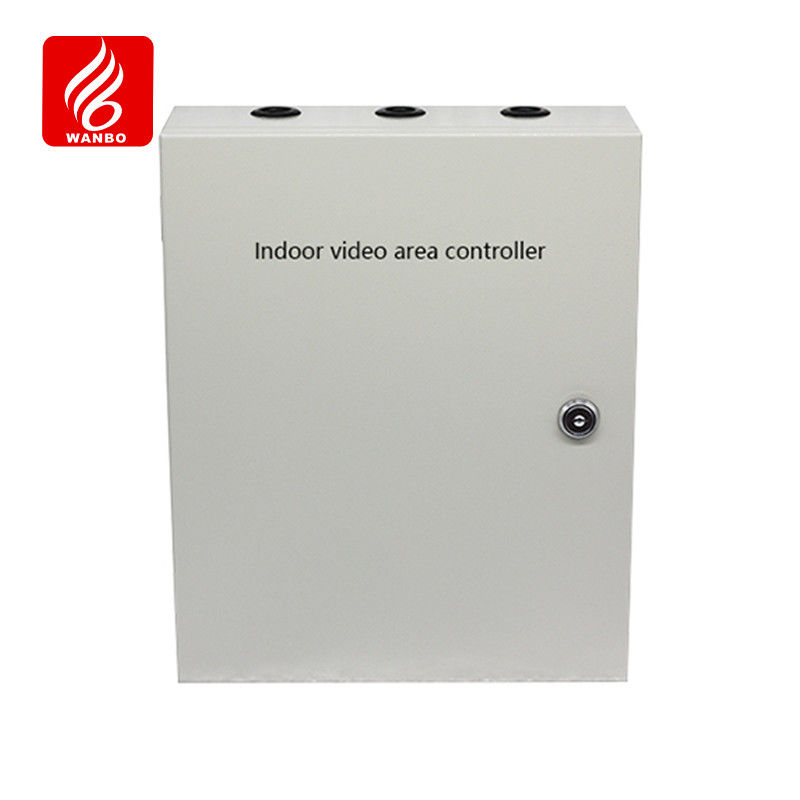

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized

Brand Name: wanbo
Model Number: WBP-K03ZV
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Model:
WBP-K03ZV
Product Name:
Indoor Video Zone Controller
Porduct Size:
400*260*90mm
Power Supply Input:
AC110V-240V
Working Temperature:
-30℃~+70℃
Storage Temperature:
-40℃~+85℃
Material:
Cold Steel Paint
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

VPGS Parking Control

,

LPR Parking Control

,

License Recognized Indoor Video Zone Controller

Product Description

Specification



Parameter classification Parameter name Parameter specifications
Model WBP-K03ZV
Function Capacity 603 parking video detectors in 5 channels (6 parking video detectors equal to 23 parking video detectors)
Port Internet Port 8 dedicated network ports for video detectors + 2 upper connected RJ 45 ports
Conventional Parameters Power Supply Input AC110-240V
Temperature: -30℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Material Cold steel paint
Porduct Size 400*260*90mm



Table 3.1 Technical parameters table of the video area controller





System architecture

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized 0



Product Description

  • The center of the video zone controller of the whole system collects the image information, parking status and license plate number uploaded by all the subordinate video detectors, and transmits the relevant information to the system management platform through the network switch.

  • Each video zone controller can connect up to 60 video sensors of three parking Spaces.

Product features

1) The power supply adopts industrial-grade design, with short circuit, overload and overvoltage protection functions.

2) The use of standard network cable connection, greatly reduce the cost of wire rod and construction difficulty;

3) The equipment has the protection design of short circuit, reverse connection and misconnection to prevent electrical damage to the equipment caused by short circuit, reverse connection and misconnection caused by wiring errors during construction;

4) Support the network isolation function, and isolate the uplink / downlink network.

Product Installation

   The controller is generally installed on the column or wall, the recommended installation height of 2 meters or above. The installation diagram is shown in Figure 4.1:

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized 1

                                      Figure 4.1 Installation diagram of the video area controller

K03ZV VPGS Indoor Video Zone Controller Camera LPR License Recognized 2

Parking Control K03ZV VPGS indoor Video Zone Controller camera LPR license recognize
