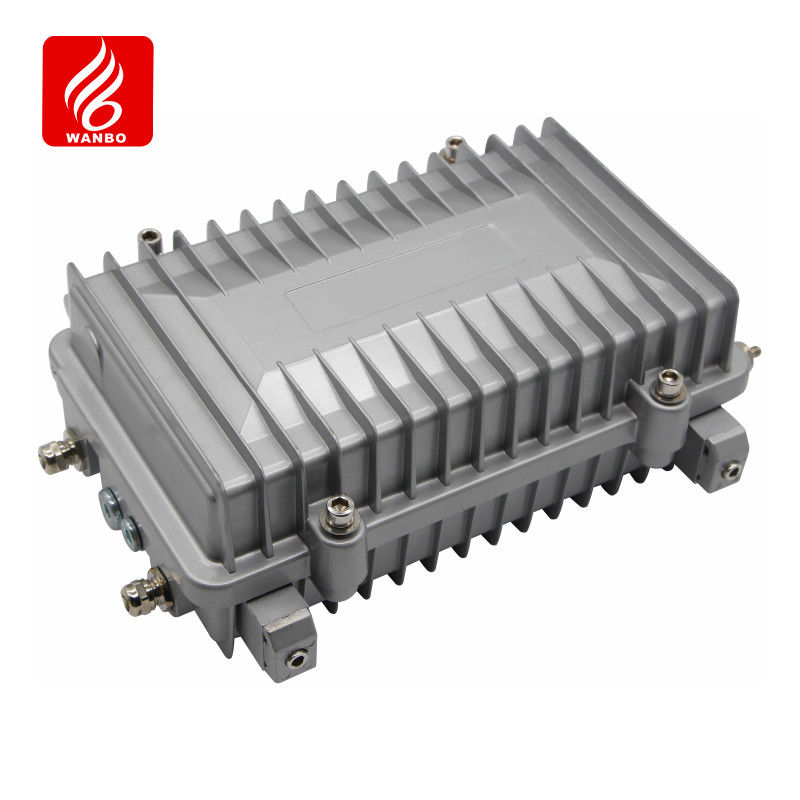

K03ZW IP66 Parking Control Outdoor Wired Zone Controller Outdoor PGS RS485

Name: K03ZW IP66 Parking Control Outdoor Wired Zone Controller Outdoor PGS RS485
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-K03ZW
Price: 330.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-K03ZW
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Outdoor Wired Zone Controller

Product Model:

WBP-K03ZW

Product NW:

5.5 KG

Product Working Temperature:

-40℃～+85℃

Product Power Dissipation:

≤2W

Product Power Supply Mode:

AC 110V～240V

Product Dimension:

300*230*110 Mm

Product Protection:

IP66

Product Ambient Humidity:

90% RH (no Condensation)

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

IP66 Parking Control

Outdoor Parking Control

RS485 Outdoor Wired Zone Controller

Product Description

Specification

Product Model:	WBP-K03 Z W
Net Weight:	5.5 KG
Specification and Dimension:	300230110 mm
Power Supply Mode:	AC 110V～240V
Power Dissipation:	<2W
Working Temperature:	-40℃～+85℃
Communication Mode:	Loop 1 RF470MHz Loop 2 CAN Loop 3 RS485
Communication Distance:	RF470MHz≤100m CAN≤1000m RS485:≤300 m
Apparatus Capacity:	Detector: 60 (depending on site distance)
Levels of Protection:	IP66
Ambient Humidity:	90% RH (no condensation)

Table 1 Technical parameter table of the outdoor wired zone controller

Product Description

The outdoor zone controller is used to connect the centralized controller and the dual-mode geomagnetic parking space detector, guide screen, etc. The outdoor zone controller collects the status information of all geomagnetic parking detectors in its zone in real time through RF470MHz wireless communication, and uploads all parking status information to the outdoor centralized controller. The protection level of outdoor zone controller is as high as IP66, which effectively deals with the harsh use environment of outdoor parking lot.

Product features

1) Using the international advanced 32-bit ARM processor, full industrial grade design, to ensure the stability and reliability of products;

2) The controller adopts waterproof and dustproof design, protection grade of IP66, to meet the needs of harsh outdoor environment;

3) Adopt the nearby power access mode, wireless communication with the detector, reduce the construction wiring and later maintenance costs;

4) Multi-level routing with outdoor centralized controller, strong system networking ability.

Example diagram of the site installation

Parking Control K03ZW IP68 Outdoor Wired Zone Controller Outdoor PGS RS485
