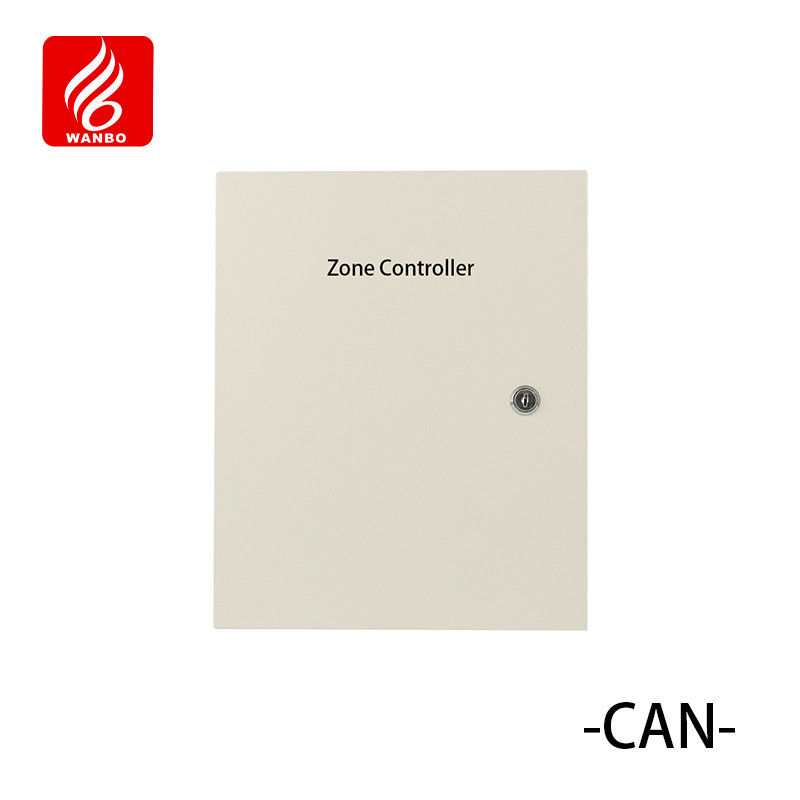

110-240V Parking Control K02Z Indoor Zone Controller RS485 CAN Bus Ultrasonic PGS ZCU

110-240V Parking Control K02Z Indoor Zone Controller RS485 CAN Bus Ultrasonic PGS ZCU

110-240V Parking Control K02Z Indoor Zone Controller RS485 CAN Bus Ultrasonic PGS ZCU

Brand Name: wanbo
Model Number: WBP-K02Z
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Model:
WBP-K02Z
Product Name:
Indoor Zone Controller
NW:
3.5Kg
Operating Voltage:
AC110～240V
Power Consumption:
≤2W
Size:
320×260×90mm
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

240V indoor zone controller

,

110v indoor zone controller

,

RS485 indoor zone controller

Product Description

Specification

Product model
WBP-K02Z
Specification and size 320×260×90mm
Net weight 3.5Kg
Housing material Galvanized plate
Node capacity

RS485:50 pcs (including detector and guide split screen)

Powerbus:42pcs (including detector and guide split screen)
Operating voltage AC 110～240V
Operating temperature -30 ~ +75℃
Communication mode

1route CAN

2routeRS485/ 1routepowerbus
Communication distance

CAN:≤1000m

RS485:≤300m

powerbus≤130m
Power consumption ≤2W(Own power consumption, without detector)


Table 3.1 Technical parameters of the indoor zone controller

System architecture110-240V Parking Control K02Z Indoor Zone Controller RS485 CAN Bus Ultrasonic PGS ZCU 0




Product Description

The indoor zone controller is used to solve the problem of unreliable long-distance communication, network node number expansion problem, group management problem.to connect the indoor node controller and the parking detector, LED display screen, etc., using RS485, CAN bus hybrid communication mechanism,

The indoor zone controller is used to check the status of the connected detector and upload the relevant information to the indoor node controller.



 Product Features

1) Adopt the international advanced 32-bit ARM processor, the whole industrial design, to ensure the stability and reliability of the product;

2) The whole system controller can be upgraded remotely, which is convenient for system maintenance and upgrading, and always meets user needs;

3) CAN, RS485/powerbus hybrid networking, strong networking capability, stable and reliable data communication, long transmission distance;

4) Optional independent dual RS485 interface and single powerbus interface, RS485 single can be connected to a maximum of 25 devices, powerbus single can be connected to a maximum of 42 devices, the detector can be large capacity, high efficiency;







Product Installation



   The indoor zone controller is usually installed on a column or wall, and is recommended to be installed at a height of 2 meters or more. The installation diagram is shown in Figure 4.1:110-240V Parking Control K02Z Indoor Zone Controller RS485 CAN Bus Ultrasonic PGS ZCU 1



Parking Control K02Z Indoor Zone Controller RS485 CAN Bus ultrasonic PGS ZCU
