Parking Sensor Indictor RedGreen Light LED Parking Indicator Outdoor Geomagnetic

Specification

Table 1 Technical parameters of geomagnetic external indicator lamp

System architecture

Product Description

  The geomagnetic external indicator light is installed directly in front of each parking space, which is directly controlled by the outdoor area controller, and displays different colors according to the instructions of the indicator light.

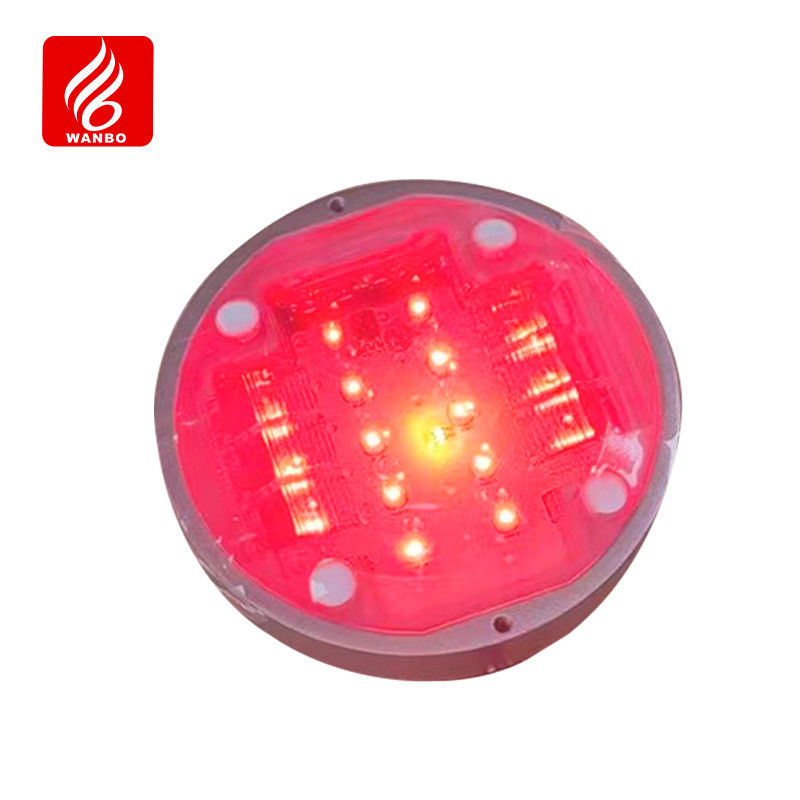

The indicator light is green when there is no vehicle parked on the parking space, and red when the vehicles are parked.

Product Features

• High-strength shell design, with the characteristics of pressure resistance, anti-corrosion, long service life;
• The protective design of high IP68 can effectively respond to various harsh environments of outdoor parking space.
• Mobile phone APP Bluetooth debugging, convenient and simple. Maintenance convenience;
• LED using Taiwan crystal element chip, active light emitting, high brightness, good warning effect;

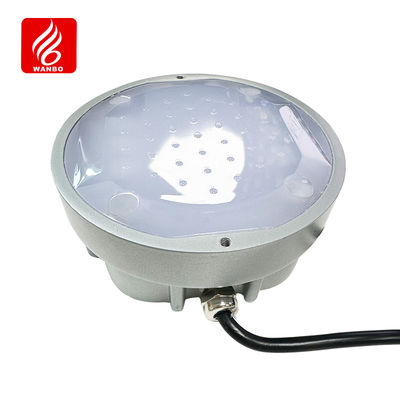

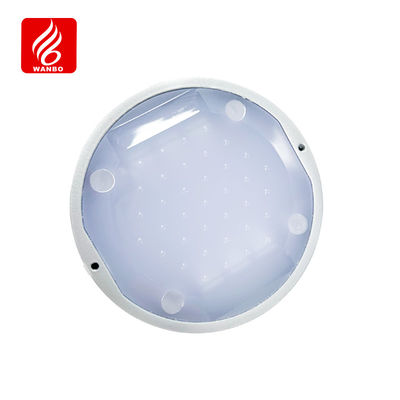

Product display

Product installation

4.1 Installation position of the indicator lamp:

The geomagnetic indicator light is installed at the front position of the parking space; as shown in the figure below:

4.2. Equipment installation steps

Step 1: according to the parking space, determine the punching position coordinates, and the line slot coordinates;

Step 2: Use drilling equipment (hydraulic drilling machine), grooving in the marking position (width 80MM * depth 50MM) and punching (requirements: diameter of 1 50mm, depth of 70mm);

Step 3: Pour the appropriate amount of concrete (C35) into the made hole, and smear the bottom and inside evenly. ; Put the geomagnetic external lamp into the hole until the ground; form a standard cylinder;

Step 4: Put the geomagnetic external lamp into the hole, the external compaction, the external lamp installation should be flat with the ground.
