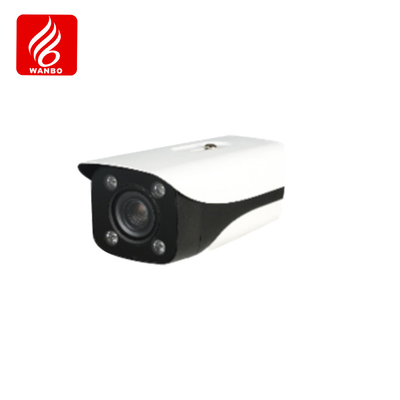

Parking management camera Rear Parking Camera WBP-T03V-RF

Name: Parking management camera Rear Parking Camera WBP-T03V-RF
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-T03V-RF
Price: 37.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-T03V-RF
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-T03V-RF

Sensor Type:

3MP High Performance CIS

Capture Resolution:

2304(H) X 1296(V)

Detect The Number Of Cars:

1-2parking Spaces

Parking Light:

Supports Integrated Lights And External Video Lights

No License Car Testing:

Support

Internet Access:

1 Route 100 Mbit RJ45 Ethernet Port

Power Dissipation:

Camera Power Consumption ≤5W; Fill Light Power Consumption ≤4W

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

2.8mm lpr cameras

Outdoor lpr cameras

1/2.9" lpr camera system

Product Description

WBP-T03V-RF Parking management camera Rear Parking Camera

Technical parameters

Model		WBP-T03V-RF
Camera	Sensor type	3MP High performance CIS
Camera	Lens type	2.8mm
Image parameter	Image compression	JPEG
	Capture resolution	2304(H) x 1296(V)
	Video stream	H.264/H.265 Video output
Feature	Detecting car number	1-2parking spaces
	Parking ligh	Supports integrated lights and external video lights
	Non-motor vehicle occupancy alarm	support
	License plate recognition types	License plate: ordinary blue plate, single and double layer yellow plate, new energy, single and double layer police car, new Armed police, single and double layer military plate, new embassy, coach car, Hong Kong and Macao in and out of
Property	Capture rate	≥99.9%
	Recognition	≥99.9%
	Parking detection time	≤5s
	License plate check out time	≤5s
Port	Net interface	1 route 100 Mbit RJ45 Ethernet port
	Power interface	3.81Connecting terminals
	Serial port	1 route RS485
Conventional parameter	Power source	Standard DC12V, support 9-15V input voltage
	Power dissipation	Camera power consumption ≤5W; Fill light power consumption ≤4W
	Working humidity	10% ~ 90%
	Operating temperature	- 30 ℃ ~ 70 ℃
	Class of protection	IP66
	aseismatic	National standard
	Install	Vertical erection

Technical parameter table of the video parking space detector

outline dimensional drawing

Product profile

The parking management camera is an important part of the parking guidance system. It uses video photography to obtain the information of the parking space currently entering the vehicle and transmits it to the server, and sets the controller parking lock and lift according to the corresponding server.

Product Installation

Installation position and height requirements:

Parking management camera Rear Parking Camera WBP-T03V-RF 0

Figure 3-1 Top view of the installation

Figure 3-2 Installation side view
