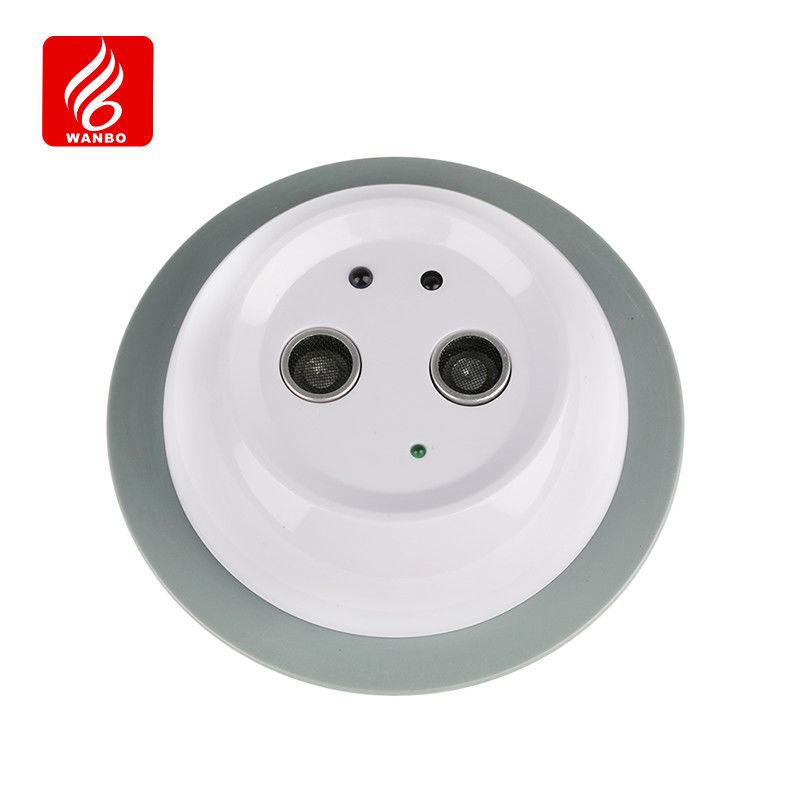

WBPT01 Parking Guidance Sensor Ultrasonic Split Type LED RGB Color Ultrasonic Detector

Name: WBPT01 Parking Guidance Sensor Ultrasonic Split Type LED RGB Color Ultrasonic Detector
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-T01
Price: 37.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-T01
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / IS09001

Product Name:

Split-type Ultrasonic Parking Space Detector

Application:

Parking Guidance

Indicator Colors:

RGB

Warranty:

12 Months

Communication Mode:

TCP/IP

Ambient Humidity:

40%～70%RH

Net Weight:

140g

Detection Accuracy:

≥99%

Packaging Details:

57*43*39cm

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

LED Parking Sensor

Split Type Parking Sensor

RGB Color parking guidance sensor

Product Description

Parameter

Parking Sensor WBPT01 Ultrasonic Split-Type LED RGB Color Ultrasonic Detector

Model	WBP-T01	Operation Voltage	DC 10～28V(Rated 24V)
Dimension	φ120*45mm	Operation Temperature	-30℃ ~ +75℃
NW	140g	RH	40%～70%RH
Installation Height	1.5～4m(suggest 2.5m)	Power consumption	<0.5W
Material	ABS engineering plastics	Communicate Mode	RS485
Range detection error	2cm	Communicate Distance	≤300m
Detection accuracy	≥99%	Supply distance	≤200m(RVV0.75*4)

System architecture

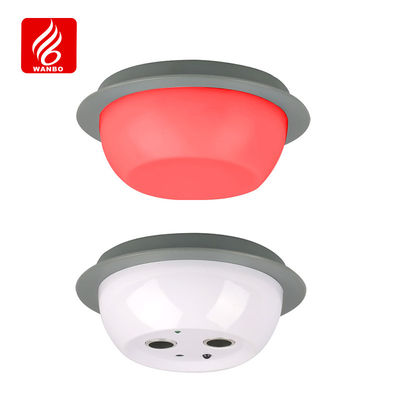

Through the split-type ultrasonic parking detector installed above each parking space, the parking information of each parking space is collected in real time. When there is a car parked, the ultrasonic parking detector controls the light above the parking line from green to red. The indoor zone controller connected to the detector will collect the information of each connected detector in the way of polling, and upload it to the centralized controller for data processing, and send the processed parking space data to the guidance screen of each parking space in the parking lot to display the empty parking space information, so as to achieve the function of guiding the vehicle into the empty parking space.

Product Description

Product Features

1) Ultra-wide detection range Settings to meet a variety of different engineering installation environments;
2) The receiving circuit adopts a variety of combined judgment methods to enhance the anti-interference and detection stability of the equipment;
3) Advanced intelligent learning anti-jamming algorithm is adopted to solve the interference of lane, side vehicle and counter shooting, and the detection accuracy rate is more than 99%;
4) The whole through strict static electricity, lightning and surge, group pulse and other tests to ensure reliable use under the influence of harsh electrical environment;
5) Mobile APP debugging, address automatically superposition, one-click parameter configuration, improve debugging efficiency.
6) Support remote upgrade.

FAQ

Question	Answer
Q1. What is your terms of packing?	A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?	A: T/T 100% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?	A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?	A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?	A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?	A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?	A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?	A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
