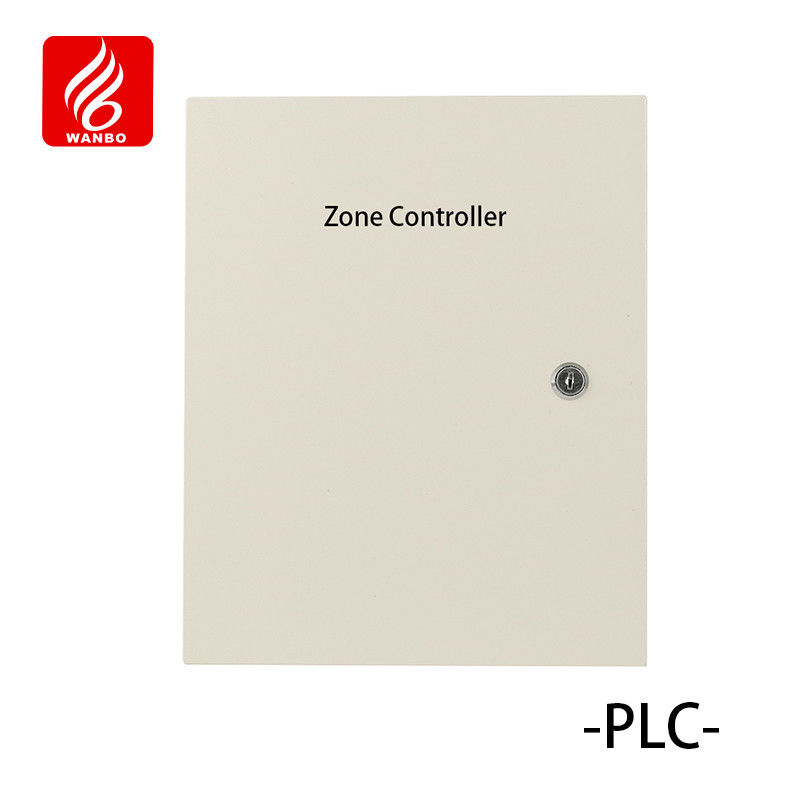

K02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism

K02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism

K02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism

Brand Name: wanbo
Model Number: WBP-T10M
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Model:
WBP-K02Z-PLC
Product Name:
Indoor PLC Zone Controller
Weight:
3.5Kg
Shell Material:
Galvanized Plate
Communication Mode:
1route CAN；2routeRS485/ 1routepowerbus
Consumption:
≤2W
Node Capacity:
RS485：50 Pcs (including Detector And Guide Split Screen) Powerbus：42pcs (including Detector And Guide Split Screen)
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

Parking Control

,

Indoor Parking Control

,

Indoor Zone Controller

Product Description

Specification

Product model WBP-K02Z-PLC
Specification and size 320×260×90mm
Net weight 3.5Kg
Housing material Galvanized plate
Node capacity

RS485:50 pcs (including detector and guide split screen)

Powerbus:42pcs (including detector and guide split screen)
Operating voltage AC 110～240V
Operating temperature -30 ~ +75℃
Communication mode

1route CAN

2routeRS485/ 1routepowerbus
Communication distance

CAN:≤1000m

RS485:≤300m

powerbus≤130m
Power consumption ≤2W(Own power consumption, without detector)


Table 3.1 Technical parameters of the indoor zone controller

System architectureK02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism 0




Product Description

The indoor PLC zone controller is used to check the status of the connected detector and upload the relevant information to the indoor node controller.

The indoor PLC zone controller is used to connect the indoor node controller and the parking detector, LED display screen, etc., using RS485, CAN bus hybrid communication mechanism, to solve the problem of unreliable long-distance communication, network node number expansion problem, group management problem.



 Product Features

1) The equipment has short-circuit, overvoltage and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction;

2) The overall industrial design, through strict static electricity, lightning and surge, group pulse testing, effectively ensure the reliable use of equipment;

3) It can quickly and effectively detect various states of the equipment, detect the communication of the equipment with one key after installation, and quickly diagnose the bus connection.

4) Support remote upgrade.



Product Installation



   The indoor zone controller is usually installed on a column or wall, and is recommended to be installed at a height of 2 meters or more. The installation diagram is shown in Figure 4.1:K02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism 1

Parking Control K02ZPLC Indoor Zone Controller Using RS485 CAN Bus Hybrid Communication Mechanism
