Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Brand Name: wanbo
Model Number: WBP-LED01
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / IS09001
Specification And Dimension:
φ120*45mm
Net Weight:
100g
Material Quality:
ABS Engineering Plastic
Color Instructions:
Red And Green Double Color Highlight LED
Mounting Height:
1.5-4 M (same Level As Detector)
Working Voltage:
DC 5V
Working Temperature:
-30℃～+75℃
Power Dissipation:
<0.5 W
Color:
7 Colors
Packaging Details:
57*43*39cm
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

Split Type parking space indicator light

,

5V parking space indicator light

,

7 colors parking space indicator

Product Description

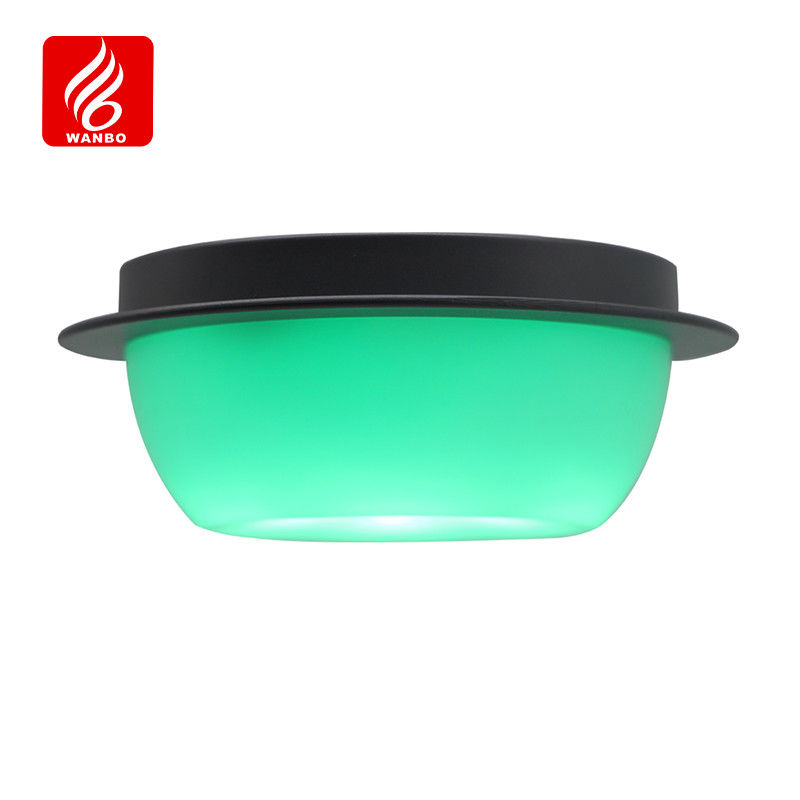

Parking Sensor Split Type Parking Space Indicator Light RGB LED Detector PGS

Parameter

Model WBP-LED01
Specification and Dimension φ120*45mm
Net Weight 100g
Material Quality ABS engineering plastic
Color Instructions Red and green double color highlight LED
Mounting Height 1.5-4 m (same level as detector)
Working Voltage DC 5V
Working Temperature -30℃～+75℃
Ambient Humidity 90% RH (no condensation)
Power Dissipation <0.5 W
Visual Range 30m


Product profile

   The parking space indicator light is installed directly in front of each parking space, and is directly controlled by the ultrasonic parking space detector, which displays different colors according to the instructions of the detector. The indicator light is green when there is no vehicle parked on the parking space, and red when the vehicles are parked.

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS 0

Product features



  • Unique appearance design, simple atmosphere;
  • The state indicator light adopts high bright LED, long service life, long visual distance, wide view;
  • The color change of the indicator light is controlled by the power carrier mode, only 2 core power lines can work, and the      construction wiring is simple.

Product installation

   The split parking space indicator light is installed between 1.5 meters and 4.0 meters directly above the parking space, and the recommended installation height is 2.5 meters. The installation diagram is shown in Figure 4.1:

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS 1



Case Images

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS 2



Parking Sensor Split Type Parking Space Indicator Light RGB LED detector PGS
