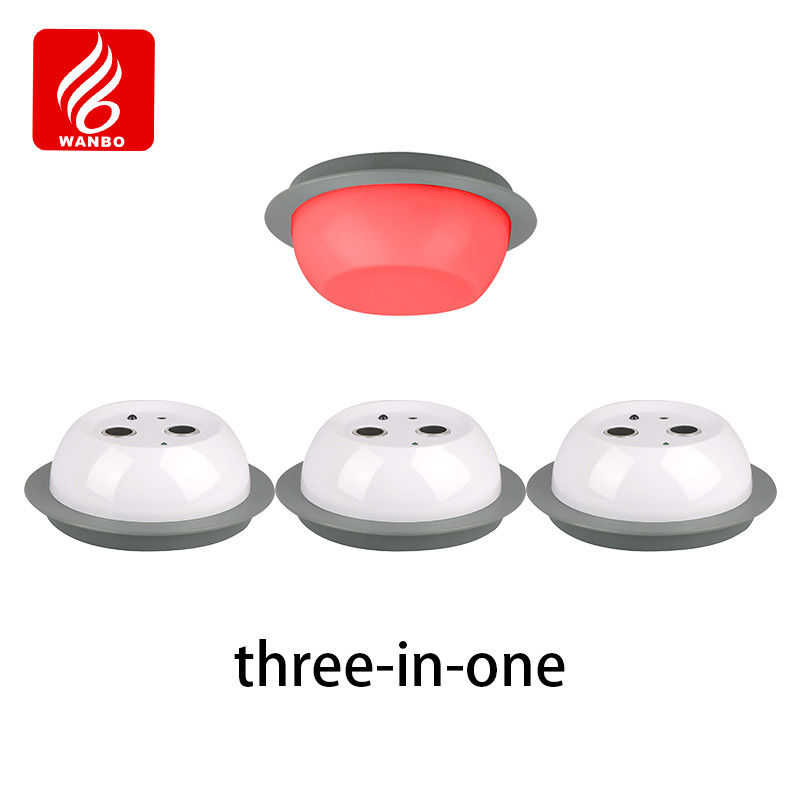

Split Type Parking Guidance System 3 In 1 Ultrasonic PGS Detector Sensor

Split Type Parking Guidance System 3 In 1 Ultrasonic PGS Detector Sensor

Brand Name:	wanbo
Model Number:	WBP-T01
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / IS09001

Product Name:

Split-type Ultrasonic Parking Space Detector

Application:

Parking Guidance

Indicator Colors:

RGB

Warranty:

12 Months

Communication Mode:

TCP/IP

Ambient Humidity:

40%～70%RH

Net Weight:

140g

Distance Detection Error:

2cm

Packaging Details:

57*43*39cm

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

Split Type parking guidance system

3 In 1 parking guidance system

PGS ultrasonic sensor based parking guidance system

Product Description

Split Type Parking Guidance System 3 In 1 Ultrasonic PGS Detector Sensor Manufacturer

Parameter

Model	WBP-T01	Operation Voltage	DC 10～28V(Rated 24V)
Dimension	φ120*45mm	Operation Temperature	-30℃ ~ +75℃
NW	140g	RH	40%～70%RH
Installation Height	1.5～4m(suggest 2.5m)	Power consumption	<0.5W
Material	ABS engineering plastics	Communicate Mode	RS485
Range detection error	2cm	Communicate Distance	≤300m
Detection accuracy	≥99%	Supply distance	≤200m(RVV0.75*4)

^{System introduction}

Through the split-type ultrasonic parking detector installed above each parking space, theparking information of each parking space is collected in real time. When there is a car parked, theultrasonic parking detector controls the light above the parking line from green to red. The indoorzone controller connected to the detector will collect the information of each connected detector inthe way of polling, and upload it to the centralized controller for data processing, and send theprocessed parking space data to the guidance scereen of each parking space in the parking lot todisplay the empty parking space information, so as to achieve the function of guiding the vehicle intothe empty parking space.

System architecture

Through the split-type ultrasonic parking detector installed above each parking space, the parking information of each parking space is collected in real time. When there is a car parked, the ultrasonic parking detector controls the light above the parking line from green to red. The indoor zone controller connected to the detector will collect the information of each connected detector in the way of polling, and upload it to the centralized controller for data processing, and send the processed parking space data to the guidance screen of each parking space in the parking lot to display the empty parking space information, so as to achieve the function of guiding the vehicle into the empty parking space.

System advantages

Through the use of this system, the intelligent and information level of the whole parking lot can be improved, and the problems that need to be handled manually are dealt with by intelligentequipment, which not only saves a lot of labor costs, but also ensures the timely, accurate andeffective of various data. The owner can find the parking space quickly and freely through all kindsof guidance equipment, saving a lot of time, making the parking lot image more perfect, and bringingthe owner a noble experience.

FAQ

Question	Answer
Q1. What is your terms of packing?	A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?	A: T/T 100% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?	A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?	A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?	A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?	A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?	A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?	A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
