Outdoor Parking Signage Wbp-Va3n2m Large Guidance Screen OEM ODM

Parking Signage Wbp-Va3n2m Outdoor Parking Large Guidance Screen Oem Odm

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

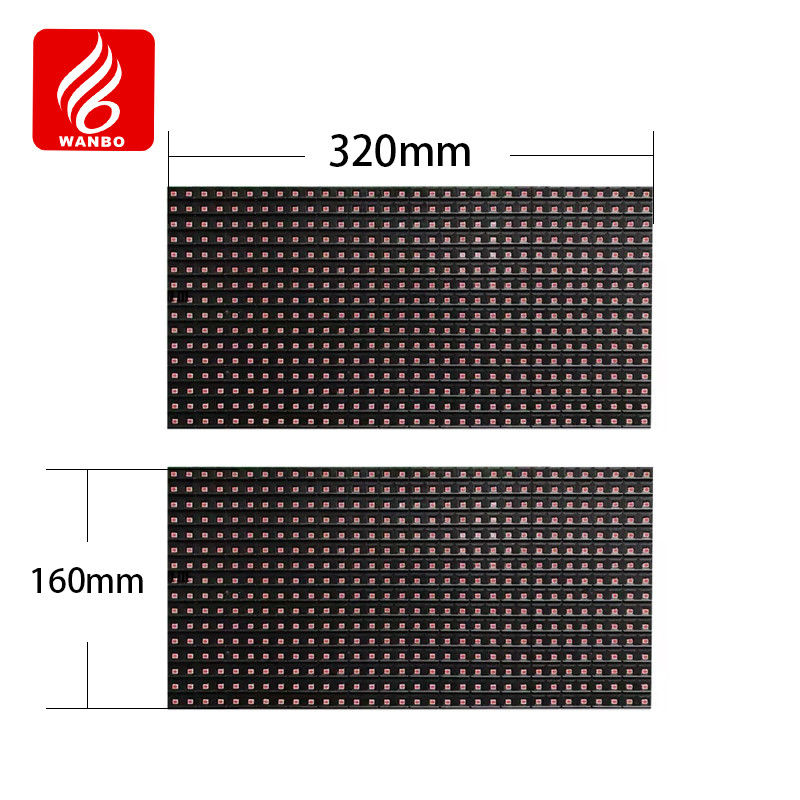

   The outdoor guide screen is an essential piece of equipment for parking lots. Comprising a high brightness LED module, a drive

circuit, a bracket and other components, it's designed to play a vital role. Installed at every entrance of the parking lot, it

functions round the clock. Its main task is to display the real-time number of remaining parking spaces in the current parking lot.

This way, drivers can immediately know if there are available spots as they approach, facilitating their decision-making. Thanks to

its durable parts and continuous operation, the outdoor guide screen effectively contributes to the orderly and efficient use of

parking spaces.

.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
