IP65 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM

Parking SignageWBPVA3N3M Outdoor Parking Large Guidance Screen OEM ODM

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

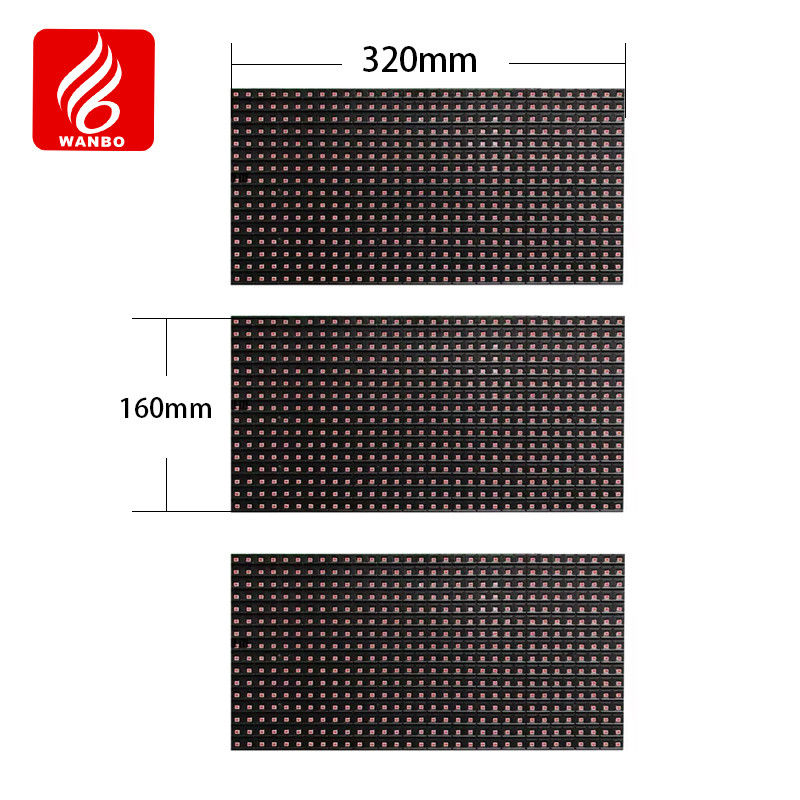

   The outdoor guide screen is a key device for parking lot management. Constructed with a high brightness LED module, a drive

circuit, a bracket and other parts, it's engineered to offer great functionality. Placed at each entrance of the parking lot, it operates

24/7. Its core function is to present the real-time count of remaining parking spaces within the lot. This enables incoming drivers

to quickly assess if there's room for them to park, saving them time and avoiding unnecessary detours. With its reliable

components and constant availability, the outdoor guide screen plays a significant role in optimizing the usage and traffic flow of

the parking lot.

.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
