WBPVA3N1M Parking Signage Outdoor Parking Large Guidance Screen OEM ODM

Parking Signage WBPVA3N1M Outdoor Parking Large Guidance Screen OEM ODM

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

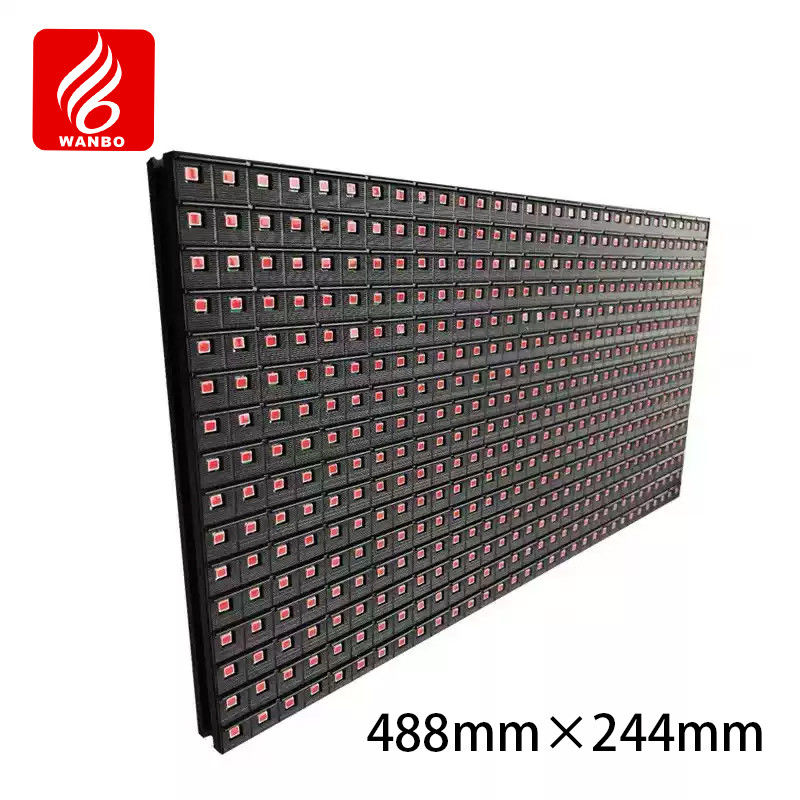

   The outdoor guide screen is a crucial device for parking lot management. It's made up of several key parts including a high

brightness LED module, a drive circuit, and a bracket. Positioned at each entrance of the parking lot, this screen serves an

important function. It operates 24 hours a day to display the real-time number of remaining parking spaces within the current

parking lot. This enables drivers approaching the lot to quickly know whether there are available spaces or not, helping them

make informed decisions. With its reliable components and strategic placement, the outdoor guide screen plays a significant

role in ensuring the smooth running and efficient utilization of the parking lot.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
