Home / Products / Parking Signage /

WBPP10 Parking Signage Parking Guidance System PGS P10 Module Screen LED Screen

Name: WBPP10 Parking Signage Parking Guidance System PGS P10 Module Screen LED Screen
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-P10
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-P10
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Model:

WBP-P10

Product Name:

P10 Module

Appearance Material:

Black Aluminum Alloy Outer Frame

Empty Car Space Part:

Screen-printed LED White Glow Word Was Used

Illuminant:

Red And Green Double Color LED Lamp Beads

Point Spacing:

4.75mm

Life Length:

At 100,000 Hours

Working Temperature:

-30℃ ~ +65℃

Service Voltage:

AC220V±10

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

P10 parking guidance system

PGS parking guidance system

4.75mm car park guidance system

Product Description

Parking Signage WBP-P10 The Parking Space Guide Plate

Technical parameters

Model:	WBP-IA31-3-M
Size:	One-way, 410 * 183 * 56 mm
	Two-way 790 * 183 * 56 mm
	Three-way 1170 * 183 * 56 mm 1410 * 183 * 56mm
Appearance material:	Black aluminum alloy outer frame
Empty car space part:	Screen-printed LED white glow word was used
illuminant:	Red and green double color LED lamp beads
Point spacing	4.75 mm
Life length	At 100,000 hours
Working temperature:	-30℃ ~ +65℃
Service voltage:	AC220V±10
Maximum power dissipation:	20 W (one-way)
Ambient humidity:	5％--9 5％ RH
Communication mode:	RS485 Bluetooth (debugging for use)
Communication distance:	Rs485≤ 300m Bluetooth Vacation 5M
Pixel point density	44,321 points / ㎡
Resolution ratio	80 * 32 = 2,560 points
Drive way	constant current

Table 3.1 Technical parameters of parking space guide plate

Product profile

The parking space guide plate is an integral part of parking lot organization. Made up of a high brightness LED module,

a drive unit, a bracket and other components, it's installed right above the front area of each parking space. It connects with

the centralized controller to receive output information. Then, it presents the parking space's attributes and license plate

number through numbers and Chinese characters. This guide plate effectively guides vehicle owners to park in the right spot,

which is crucial for maintaining the smooth running of the parking lot and enabling all parking spaces to be fully utilized.

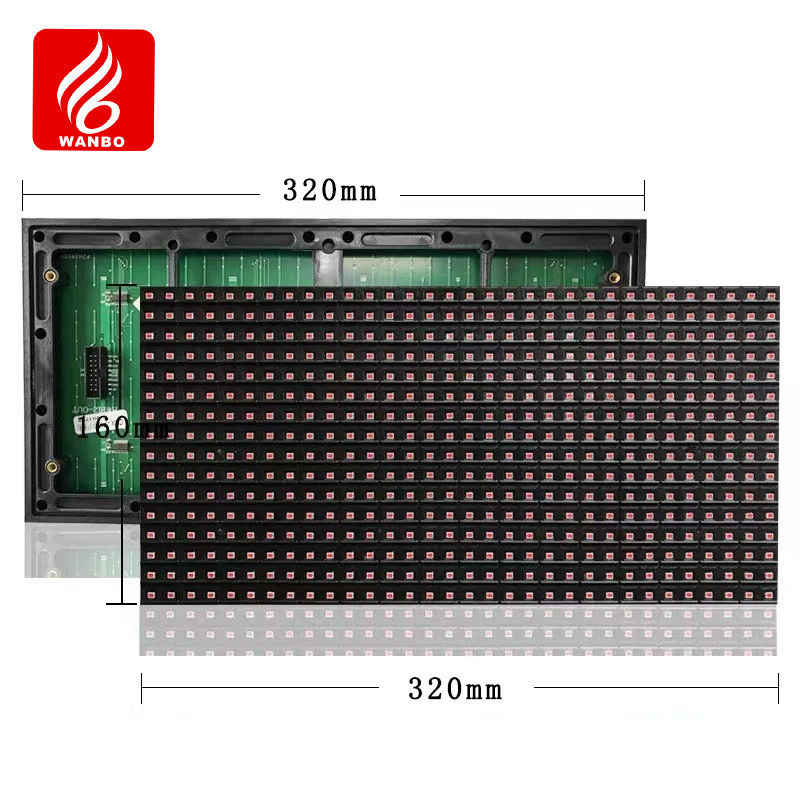

In essence, it's a practical and efficient tool for an orderly parking environment. WBPP10 Parking Signage Parking Guidance System PGS P10 Module Screen LED Screen 0

Product features

The guide screen adopts black aluminum alloy outer frame, the appearance is simple and atmosphere;
The guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
The display content supports Settings to meet the use of various parking space types;
Green instructions are clearly discernible, with high luminous intensity, far visible distance, and wide perspective;

Product installation

The parking space guide plate is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by metal hose. The installation diagram is shown in Figure 4.1:

WBPP10 Parking Signage Parking Guidance System PGS P10 Module Screen LED Screen 1

Figure 4.1 Installation diagram of outdoor wired guide screen
