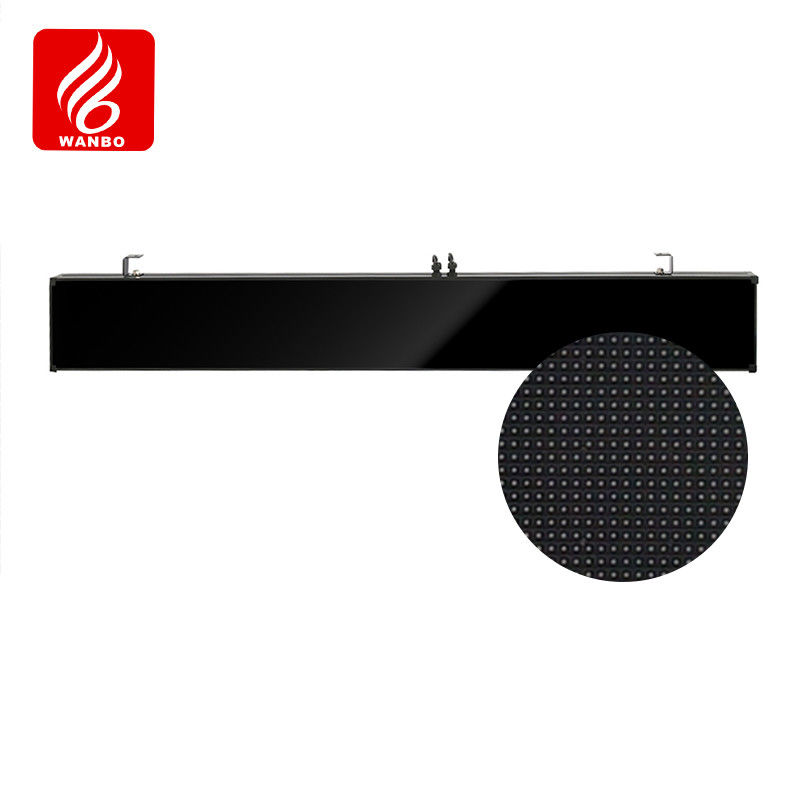

WBPIA313M Parking Guidance System Parking Guidance Screen

WBPIA313M Parking Guidance System Parking Guidance Screen

WBPIA313M Parking Guidance System Parking Guidance Screen

Brand Name: wanbo
Model Number: WBP-IED-3
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model:
WBP-IED-3
Appearance Material:
Black Aluminum Alloy Outer Frame
Empty Car Space Part:
Screen-printed LED White Glow Word Was Used
Illuminant:
Red And Green Double Color LED Lamp Beads
Point Spacing:
4.75 Mm
Life Length:
At 100,000 Hours
Working Temperature:
-30℃ ~ +65℃
Service Voltage:
AC220V±10
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

220V parking guidance system

,

parking guidance system

,

220V parking guidance screen

Product Description

Parking Signage WBPIA313M Parking Guidance Screen

Technical parameters

Model:
WBP-IA31-3-M
Size: One-way, 410 * 183 * 56 mm

Two-way 790 * 183 * 56 mm
Three-way 1170 * 183 * 56 mm 1410 * 183 * 56mm
Appearance material: Black aluminum alloy outer frame
Empty car space part: Screen-printed LED white glow word was used
illuminant: Red and green double color LED lamp beads
Point spacing 4.75 mm
Life length At 100,000 hours
Working temperature: -30℃ ~ +65℃
Service voltage: AC220V±10
Maximum power dissipation: 20 W (one-way)
Ambient humidity: 5％--9 5％ RH
Communication mode:

RS485 Bluetooth (debugging for use)
Communication distance:

Rs485≤ 300m

Bluetooth Vacation 5M
Pixel point density 44,321 points / ㎡
Resolution ratio 80 * 32 = 2,560 points
Drive way constant current


Table 3.1 Technical parameters of parking space guide plate

Product profile

  The parking space guide plate is an essential component for efficient parking. Consisting of a high brightness LED module,
a drive unit, a bracket and other elements, it's installed above the front of each parking space. It takes in the output
information from the centralized controller and then displays the parking space's attributes and license plate number using
numbers and Chinese characters. This helps guide vehicle owners to park precisely in the right spots, thus ensuring smooth
traffic flow within the parking lot and enabling full utilization of all parking spaces. In short, it's a practical device that
significantly contributes to organized and effective parking arrangements. WBPIA313M Parking Guidance System Parking Guidance Screen 0


Product features

  • The guide screen adopts black aluminum alloy outer frame, the appearance is simple and atmosphere;
  • The guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
  • The display content supports Settings to meet the use of various parking space types;
  • Green instructions are clearly discernible, with high luminous intensity, far visible distance, and wide perspective;

Product installation

  The parking space guide plate is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by metal hose. The installation diagram is shown in Figure 4.1:

WBPIA313M Parking Guidance System Parking Guidance Screen 1

Figure 4.1 Installation diagram of outdoor wired guide screen
