WBPIA311M Parking Signage Parking Guidance Signage Screen

WBPIA311M Parking Signage Parking Guidance Signage Screen

WBPIA311M Parking Signage Parking Guidance Signage Screen

Brand Name: wanbo
Model Number: WBP-IA31-1-M
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model:
WBP-IA31-1-M
Appearance Material:
Black Aluminum Alloy Outer Frame
Empty Car Space Part:
Screen-printed LED White Glow Word Was Used
Illuminant:
Red And Green Double Color LED Lamp Beads
Point Spacing:
4.75 Mm
Life Length:
At 100,000 Hours
Working Temperature:
-30℃ ~ +65℃
Service Voltage:
AC220V±10
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

220V parking guidance signage

,

One way parking guidance signage

,

Two way car park guidance system

Product Description

Parking Signage WBPIA311M Parking Guidance Screen

Technical parameters

Model:
WBP-IA31-1-M

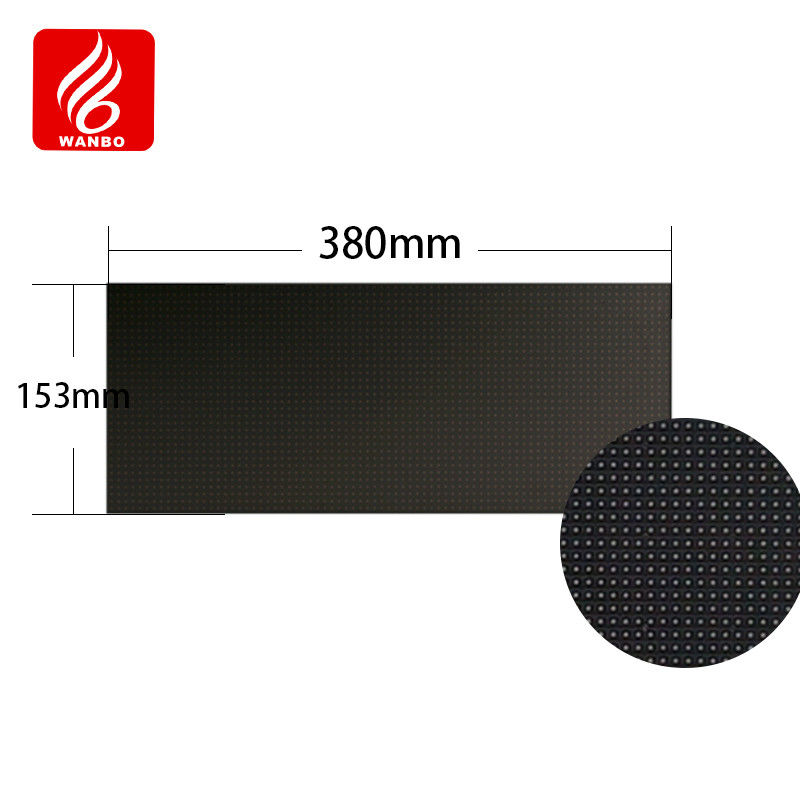

Size: One-way, 380 mm*153mm

Two-way 780mm * 153mm
Three-way 1140 mm* 153mm
Appearance material: Black aluminum alloy outer frame
Empty car space part: Screen-printed LED white glow word was used
illuminant: Red and green double color LED lamp beads
Point spacing 4.75 mm
Life length At 100,000 hours
Working temperature: -30℃ ~ +65℃
Service voltage: AC220V±10
Maximum power dissipation: 20 W (one-way)
Ambient humidity: 5％--9 5％ RH
Communication mode:

RS485 Bluetooth (debugging for use)
Communication distance:

Rs485≤ 300m

Bluetooth Vacation 5M
Pixel point density 44,321 points / ㎡
Resolution ratio 80 * 32 = 2,560 points
Drive way constant current


Table 3.1 Technical parameters of parking space guide plate

Product profile

  The parking space guide plate is an important device composed of a high brightness LED module, a drive unit, a bracket and
other components. It is installed right above the front of each parking space. This guide plate receives the output information
from the centralized controller. Then, it displays the attributes of the parking space as well as the license plate number
(if applicable) in the forms of numbers and Chinese characters. By doing so, it effectively guides vehicle owners to park their
cars on the correct spaces, which not only helps maintain a smooth traffic flow within the parking lot but also ensures that all
parking spaces are fully utilized. In a word, it's a practical addition for efficient parking management. WBPIA311M Parking Signage Parking Guidance Signage Screen 0


Product features

  • The guide screen adopts black aluminum alloy outer frame, the appearance is simple and atmosphere;
  • The guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
  • The display content supports Settings to meet the use of various parking space types;
  • Green instructions are clearly discernible, with high luminous intensity, far visible distance, and wide perspective;

Product installation

  The parking space guide plate is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by metal hose. The installation diagram is shown in Figure 4.1:

WBPIA311M Parking Signage Parking Guidance Signage Screen 1

Figure 4.1 Installation diagram of outdoor wired guide screen
