Turnstile Gat Quick Pass Door Security VIP Entrance Face Fingerprint RFID Card

Turnstile Gat Quick Pass Door Security VIP Entrance Face Fingerprint RFID Card

Brand Name: wanbo
Model Number: WB-SG07
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Place of Origin:
China
Model Number:
WB-SG07
Appearance Size:
1500 *120* 1020mm
Outer Box:
1.2mm+1.0mm
Drive Motor:
24V Brushless DC Motor, Low Noise
Opening Signal:
Dry Contact Signal, Can Be Customized RS232 Mode
Lifetime:
9 Million Times
Power:
40-60w
Selling Units:
Single Item
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

RFID Card swing turnstile gate

,

DC motor swing turnstile gate

,

60w tripod security gates

Product Description

Specification

Appearance size
1500 * 120 * 1020mm
Opening method
Biometric recognition, IDIC, remote control switch, etc.
Material construction
SUS304, tempered glass, acrylic
Opening signal
Dry contact signal, customizable RS232 mode
Channel width
Standard 600mm (customizable up to ≤900mm)
Protection function
Clutch collision solution
Outer casing
1.2mm + 1.0mm
Lifespan
9 million cycles
Drive motor
24V DC brushless motor, low noise
Number of infrared sensors
6 pairs
Control board
Integrated brushless control system
Power
40-60w
Direction of passage
Single direction/Dual direction passage
Applicable temperature range
-15~70℃ (add a thermostat below -15℃)
Operating speed
0.5~0.8S
Suitable for
Indoor and outdoor use

Product description

Pedestrian access gates are the intelligent guardians of modern safe passage and lead the industry trend with excellent
performance.
In today's fast-paced society, safe and efficient personnel passage management is of utmost importance. Our pedestrian access gates are precisely designed for this purpose.
It is meticulously crafted with advanced mechatronics technology and high-quality durable materials. With a stylish and
appearance, it can perfectly blend into the environments of various places. Whether it is a high-end office building, a bustling shopping mall, a busy subway station, a professional hospital, or a scholarly school, pedestrian access gates can become a beautiful landscape.
It has highly intelligent functions. The precise infrared sensing system and advanced radio frequency identification technology can quickly identify the passage needs of personnel and achieve millisecond-level gate opening and release, greatly improving passage efficiency and reducing waiting time. At the same time, a strict access control mechanism ensures that only authorized personnel can pass through, effectively preventing unauthorized personnel from entering and providing a solid guarantee for the safety of the place. In the field of security, pedestrian access gates have become the first choice for many places due to their stable performance and reliable protection capabilities.
Pedestrian access gates also have strong stability and durability. After strict quality inspection and high-intensity fatigue
testing, they can operate stably for a long time in various complex environments. Whether it is exposed to wind and sun,
temperature changes, or frequent use, they can maintain excellent performance and reduce maintenance costs.

Product advantage

1. The mechanism has obtained national invention patents, utility model patents, and software copyrights for the drive system;

2. Modular waterproof design for independent maintenance, simple and fast;

3. High-precision metal bearing transmission, zero friction, low resistance;

4. Equipped with zero-position automatic correction function;

5. Multi-layer anti-clamp detection with current, position, and infrared;

6. Features self-inspection for faults;

7. Automatic reset function, if no passage occurs within the set time after the gate opens, the system will automatically cancel the user's access rights for this passage, with a standard automatic reset time of 3 seconds after opening;

8. Low-power industrial-grade electronic components for high stability;

9. Mechanical parts are made with CNC precision technology, and connectors are made with high-temperature quenching technology, ensuring no deformation during long-term operation;

10. Customizable color options.

Product display

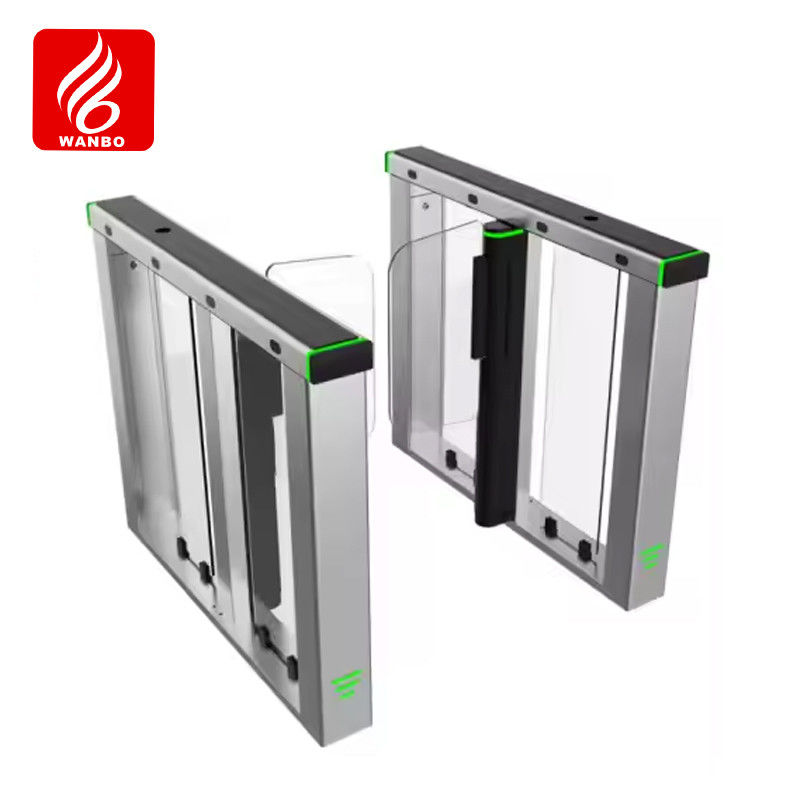

Turnstile Gat Quick Pass Door Security VIP Entrance Face Fingerprint RFID Card 0
