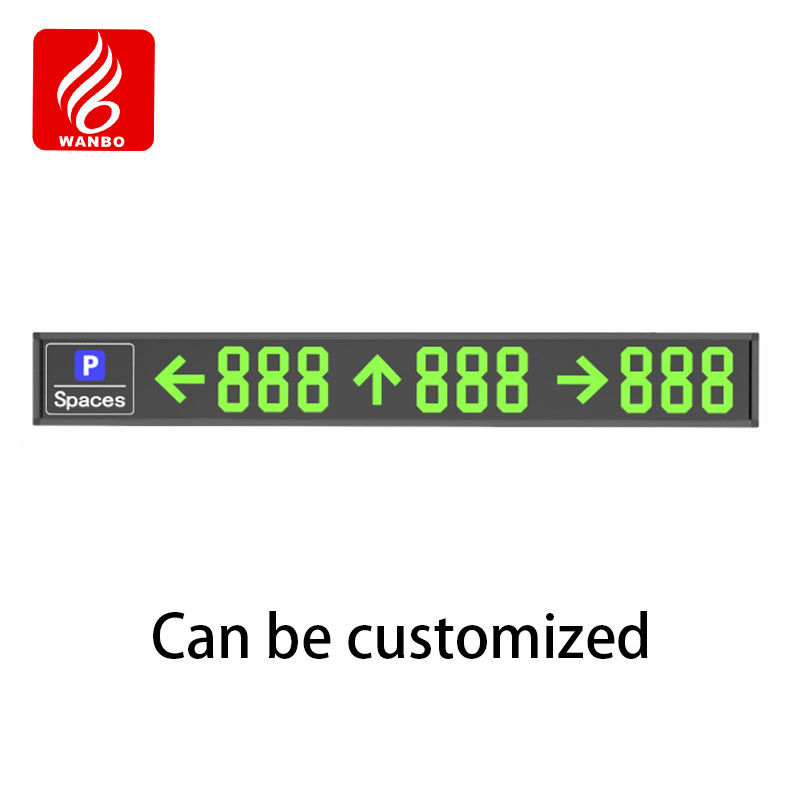

Parking Signage IA31D Indoor Guidance Screen OEM ODM Threeway Wayfinder Board PGS

Table 3.1 Technical parameters of the indoor boot screen

The custom-made three-way guidance screen designed for indoor use is assembled with a high-brightness LED module, a precision-engineered drive unit, a sturdy support structure, and several other integral components. It is strategically installed at pivotal traffic convergences and high-traffic turnover zones within the parking lot. This intelligent screen is adept at receiving the real-time output information transmitted by the centralized controller. Subsequently, it vividly presents the quantity of vacant parking spaces in the relevant area through a combination of conspicuous numbers, directional arrows, and other intuitive visual elements. By doing so, it efficiently directs vehicle owners arriving from three different directions to swiftly locate unoccupied parking spots, thereby ensuring the seamless operation and fluid traffic flow throughout the parking lot and enabling the full utilization of every available parking space.

• Product features

• Our custom-made three-way guidance screen showcases a refined black aluminum alloy frame, endowing it with a minimalist yet majestic appearance that can effortlessly complement any indoor or outdoor setting, adding a touch of modern elegance.
• Engineered with an innovative low power consumption design philosophy, this guidance screen comes fortified with comprehensive protection features. It is equipped with short-circuit protection, overvoltage protection, overcurrent protection, and overload protection, safeguarding its reliable and uninterrupted operation even under fluctuating power conditions.
• Boasting exceptional versatility, it offers robust multi-directional display functionality. This means it can be precisely calibrated to meet the diverse and complex demands of various intersection layouts, be it a busy T-junction, a multi-lane roundabout, or a sprawling crossroads, providing clear and unambiguous guidance to motorists approaching from all three directions.
• The vivid green indications on the screen are meticulously designed for optimum clarity and instant recognition. The high-intensity lamp beads incorporated not only ensure a remarkably long viewing distance but also afford a wide viewing angle. This allows drivers, regardless of their position relative to the screen, to easily discern the crucial guidance information, even in challenging lighting scenarios like bright sunlight or low-light evenings.

Product installation and wiring

  The indoor guide screen is installed by ceiling hoisting, and the power and signal cables are directly led from the bridge to the guide panel box using metal hoses. The installation diagram is shown in Figure 4.1:

Case Images
