Home / Products / Parking Signage /

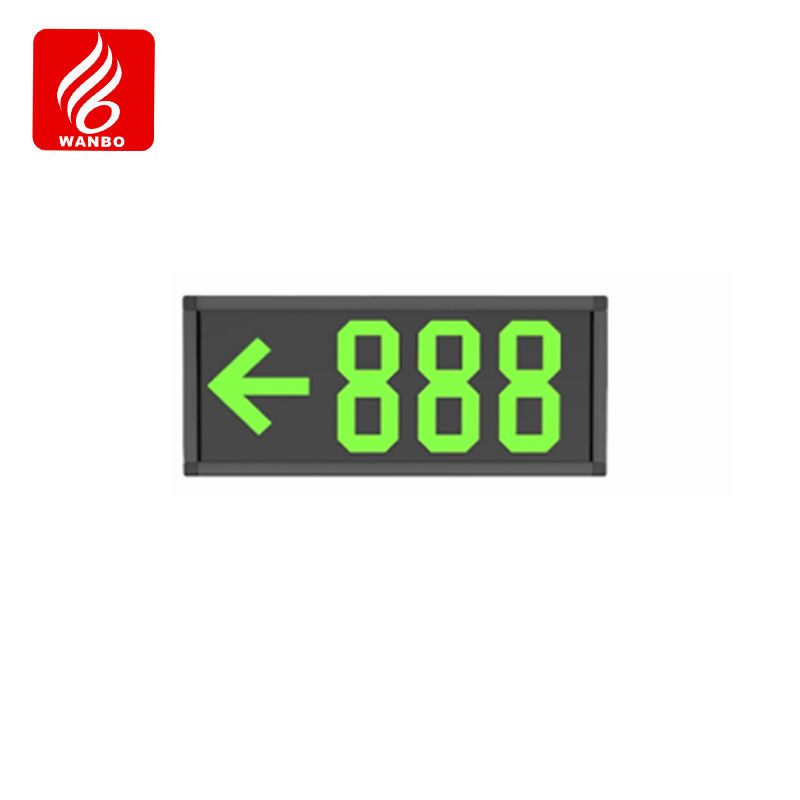

IED1 Parking Signage Oneway Indoor Guidance Board Display Wayfinder Screen

Name: IED1 Parking Signage Oneway Indoor Guidance Board Display Wayfinder Screen
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-IED-1
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-IED-1
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-IED-1

Appearance Material:

Black Aluminum Alloy Outer Frame

Empty Car Space Part:

Screen-printed LED White Glow Word Was Used

Illuminant:

Red And Green Double Color LED Lamp Beads

Point Spacing:

4.75 Mm

Life Length:

At 100,000 Hours

Working Temperature:

-30℃ ~ +65℃

Service Voltage:

AC220V±10

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

IED1 Parking Signage

Wayfinder Parking Signage

car park guidance system

Product Description

Parking Signage IED1 Oneway Indoor Guidance Board Display Wayfinder Screen

Technical parameters

Model:	WBP-IED-1
Size:	One-way, 410 * 183 * 56 mm
	Two-way 790 * 183 * 56 mm
	Three-way 1170 * 183 * 56 mm 1410 * 183 * 56mm
Appearance material:	Black aluminum alloy outer frame
Empty car space part:	Screen-printed LED white glow word was used
illuminant:	Red and green double color LED lamp beads
Point spacing	4.75 mm
Life length	At 100,000 hours
Working temperature:	-30℃ ~ +65℃
Service voltage:	AC220V±10
Maximum power dissipation:	20 W (one-way)
Ambient humidity:	5％--9 5％ RH
Communication mode:	RS485 Bluetooth (debugging for use)
Communication distance:	Rs485≤ 300m Bluetooth Vacation 5M
Pixel point density	44,321 points / ㎡
Resolution ratio	80 * 32 = 2,560 points
Drive way	constant current

Table 3.1 Technical parameters of parking space guide plate

Product profile

The one-way parking space guide plate is an essential component in modern parking management systems. It is meticulously constructed, integrating a high-brightness LED module, a precisely calibrated drive unit, a sturdy bracket, and other requisite parts. This guide plate is strategically installed right above the front area of each parking space, playing a pivotal role in streamlining the parking process.

It is designed to establish a seamless connection with the centralized controller, promptly receiving its output information. Subsequently, it vividly presents the specific attributes of the parking space, such as whether it is reserved, handicapped-accessible, or a regular spot, along with the corresponding license plate number (if applicable), through a clear combination of numbers and Chinese characters. By doing so, it efficiently directs vehicle owners approaching from a single direction to accurately park their vehicles in the correct parking space, thereby not only enhancing the convenience for drivers but also guaranteeing the unimpeded traffic flow throughout the parking lot and facilitating the optimal utilization of every available parking space. This one-way parking space guide plate truly exemplifies innovation in parking guidance technology.

Product features

The one-way guide screen adopts black aluminum alloy outer frame, the appearance is simple and atmosphere;
The one-way guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
The one-way display content supports Settings to meet the use of various parking space types;
Green instructions are clearly discernible, with high luminous intensity, far visible distance, and wide perspective;

Product installation

The parking space guide plate is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by metal hose. The installation diagram is shown in Figure 4.1:

IED1 Parking Signage Oneway Indoor Guidance Board Display Wayfinder Screen 1

Figure 4.1 Installation diagram of outdoor wired guide screen

Parking Signage IED1 oneway indoor guidance board display wayfinder Screen
