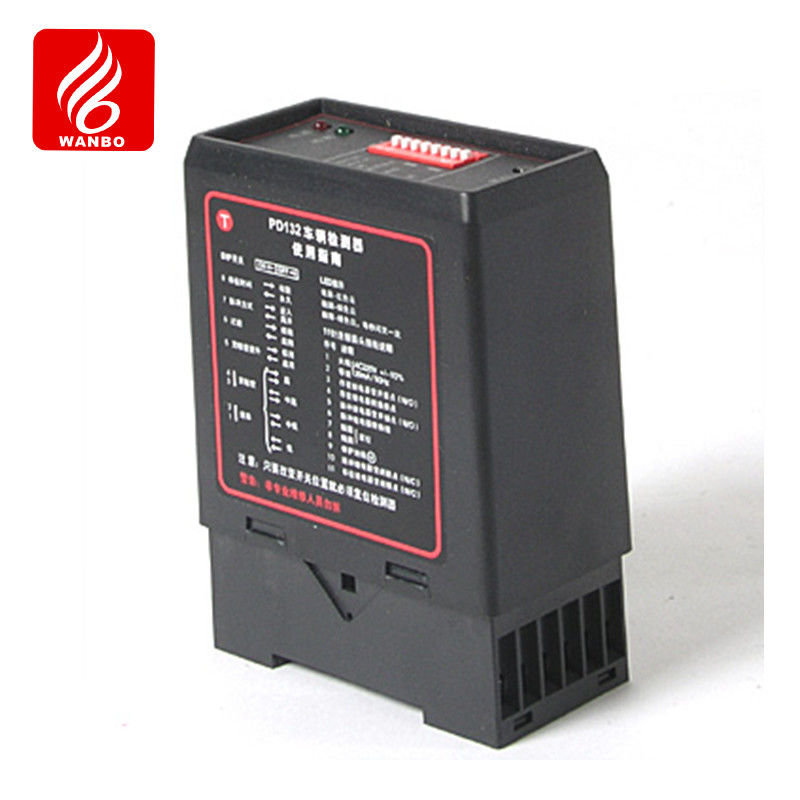

WBPD13L Singleloop Ground Sensing Coil Detector Parking Lot Entrance Exit PMS

WBPD13L Singleloop Ground Sensing Coil Detector Parking Lot Entrance Exit PMS

WBPD13L Singleloop Ground Sensing Coil Detector Parking Lot Entrance Exit PMS

Brand Name: wanbo
Model Number: WBP-D13L
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Operating Voltage:
AC 230/110V±10% 50HZ Optional, See The Body Label
Rated Power:
4.5W
Operating Temperature:
-25℃~65℃
Working Humidity:
≤95% (no Condensation)
Operating Frequency:
20KHz~170KHz
Reaction Time:
10ms
Existence Time:
Unlimited/limited Existence 5 Minutes
Size (including Base):
78×40×108mm (length × Width × Height)
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

Ground Sensing Coil Detector

,

Singleloop Sensing Coil Detector

,

Entrance Exit PMS

Product Description

Technical parameters

Operating voltage AC 230/110V±10% 50HZ Optional, see the body label
Rated power 4.5W
Operating temperature -25℃~65℃
Working humidity ≤95% (no condensation)
Operating frequency 20KHz~170KHz
Reaction time 10ms
Existence time Unlimited/limited existence 5 minutes
Size (including base) 78×40×108mm (length × width × height)


Table 1 Technical parameters

Product Overview

   It is applicable to the fields of parking lots, road traffic, traffic light control, vehicle entry and exit counting, etc. The T20 has two relay outputs, namely K1 and K2. One is an infinitely existing output, and the other is a multi-functional output that can be set by users (or customized holding time). The output signals can be used to control automatic doors, anti-vehicle-crushing barriers of road gates, traffic signal lights and so on.

Advantages and characteristics

  • Sensitivity four adjustable;



  • Coil operating frequency four adjustable;
  • Strengthen the filtering function, improve anti-interference ability;
  • Automatic sensitivity improvement function, improve the reliability of high chassis vehicle detection;
  • Ten minutes automatic reset function;
  • Coil lightning protection (pressure sensitive, self-recovery insurance and TVS), 4000V AC;
  • Double relay output, three output modes can be adjusted;

WBPD13L Singleloop Ground Sensing Coil Detector Parking Lot Entrance Exit PMS
