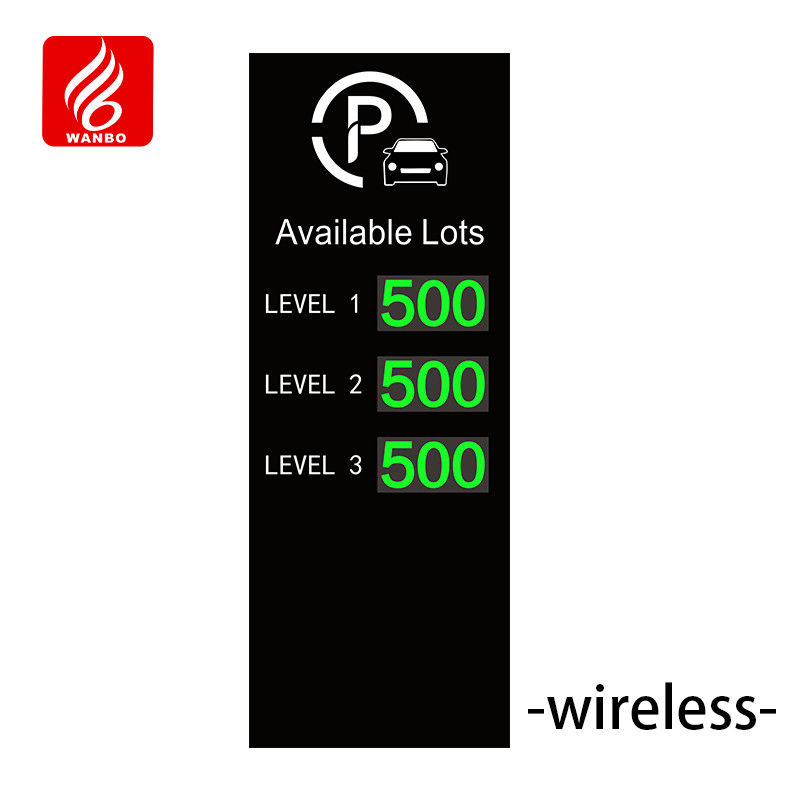

Parking Signage WBPVA3NW3 Outdoor Parking Large Guidance Screen OEM ODM

Parking Signage WBPVA3NW3 Outdoor Parking Large Guidance Screen OEM ODM

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

   The outdoor guide screen, an essential part of parking lot infrastructure, is crafted from multiple components including a high

brightness LED module, a drive circuit, a bracket and others. Installed at every entrance of the parking lot, its primary function is

to showcase the real-time quantity of remaining parking spaces within the lot. This enables drivers to promptly know where they

can park as they enter. Operating 24 hours a day, it stands as a reliable assistant regardless of the time of day or night. Its

well-designed structure and quality parts ensure durability against various outdoor conditions. Overall, it significantly contributes

to streamlining parking operations and improving the user experience in the parking lot.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
