Home / Products / Parking Signage /

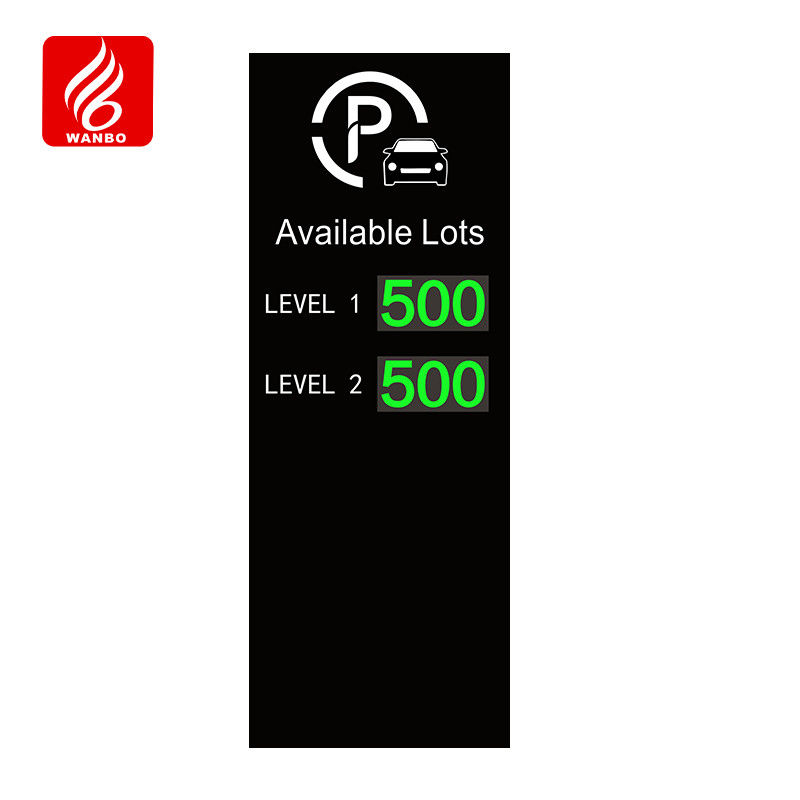

Parking Signage WBPVA3N2 Outdoor Parking Large Guidance Screen OEM ODM

Name: Parking Signage WBPVA3N2 Outdoor Parking Large Guidance Screen OEM ODM
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-VA3N-2
Price: 55 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-VA3N-2
MOQ:	1Set
Price:	US $55
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-VA3N-2(Tow-layer)

Size:

800*160*2200mm

Levels Of Protection:

IP65

Supports The Display Number:

Three Or Four

Illuminant:

Red / Green Highlighted LED

Working Voltage:

AC 110～240V

Working Temperature:

From -30℃ To +75℃

Language:

English

Weatherproof:

Yes

Durability:

Long-lasting

Visibility:

Highly Visible

Reflective:

Yes

Supply Ability:

1 ~ 5000 piece 30days

Product Description

WBP-VA3N-2 Outdoor Parking Large Guidance Screen OEM ODM

Specification

Model:	WBP-VA3N-2 (Tow-layer)
Size:	8001602200mm
Levels of Protection:	IP65
Supports the Display Number	Three or four
illuminant:	Red / green highlighted LED
Appearance Material:	Cold steel baking paint + tempered glass panel
Working Voltage:	AC 110～240V
Working Temperature:	-30℃ ~ +75℃
Ambient Humidity:	90% RH (no condensation)
Power Dissipation:	15W (single layer)
Communication Mode:	RS485
Communication Distance:	≤ 300 m

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

The outdoor guide screen consists of a high brightness LED module, drive circuit, bracket and other components.

Installed at every entrance of the parking lot, it functions to display the real-time number of remaining parking spaces. Operating

24 hours daily, it plays a crucial role in facilitating efficient parking management. Parking Signage WBPVA3N2 Outdoor Parking Large Guidance Screen OEM ODM 1

Product Features

The guide screen adopts tempered glass panel + cold steel baking paint shell. Also,the appearance is of simple atmosphere;
The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Parking Signage WBPVA3N2 Outdoor Parking Large Guidance Screen OEM ODM 2

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture

Parking Signage WBPVA3N2 Outdoor Parking Large Guidance Screen OEM ODM 3
