WBPVA3NWN Outdoor Wireless Parking Large Guidance Screen OEM ODM

Parking Signage WBPVA3NWN Outdoor Wireless Parking Large Guidance Screen OEM ODM

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

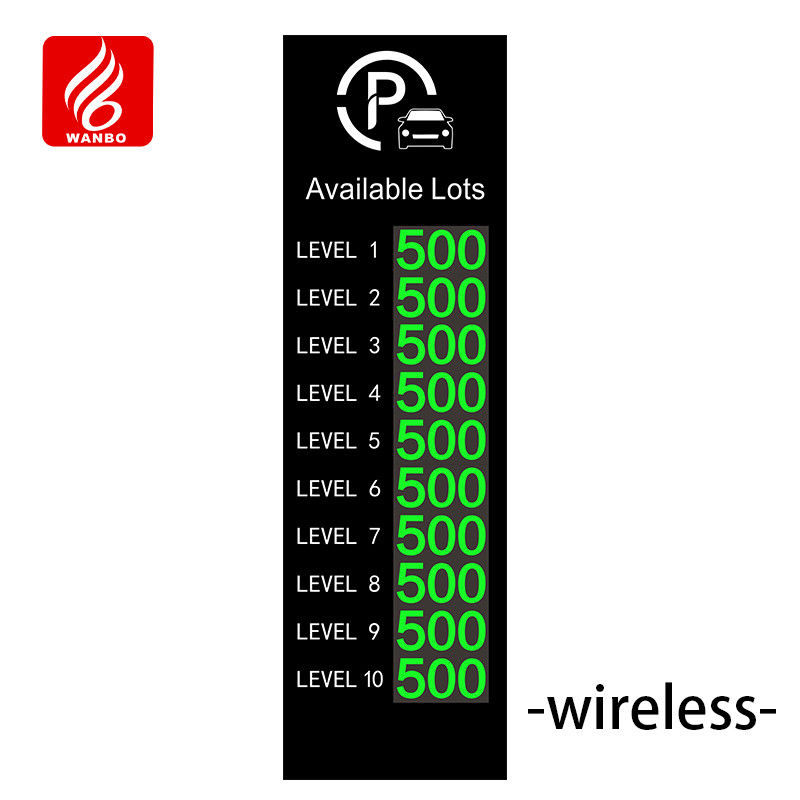

   The outdoor guide screen is a remarkable addition to parking lot facilities. Made up of a high brightness LED module, a proficient

drive circuit, a durable bracket, and other components, it's engineered for excellent performance. Placed strategically at each

entrance of the parking lot, its prime task is to showcase the real-time quantity of remaining parking spaces. This enables

incoming drivers to instantly grasp the parking availability and make smart decisions. What's more, it functions continuously

throughout the day and night, braving all weather conditions. Its robust design ensures long-term reliability. In short, it's an

indispensable asset that significantly boosts the efficiency and convenience of parking operations.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
