WBPVA3NN Parking Signage Outdoor Wired Parking Large Guidance Screen OEM ODM

Parking Signage WBPVA3NN Outdoor Wired Parking Large Guidance Screen OEM ODM

Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

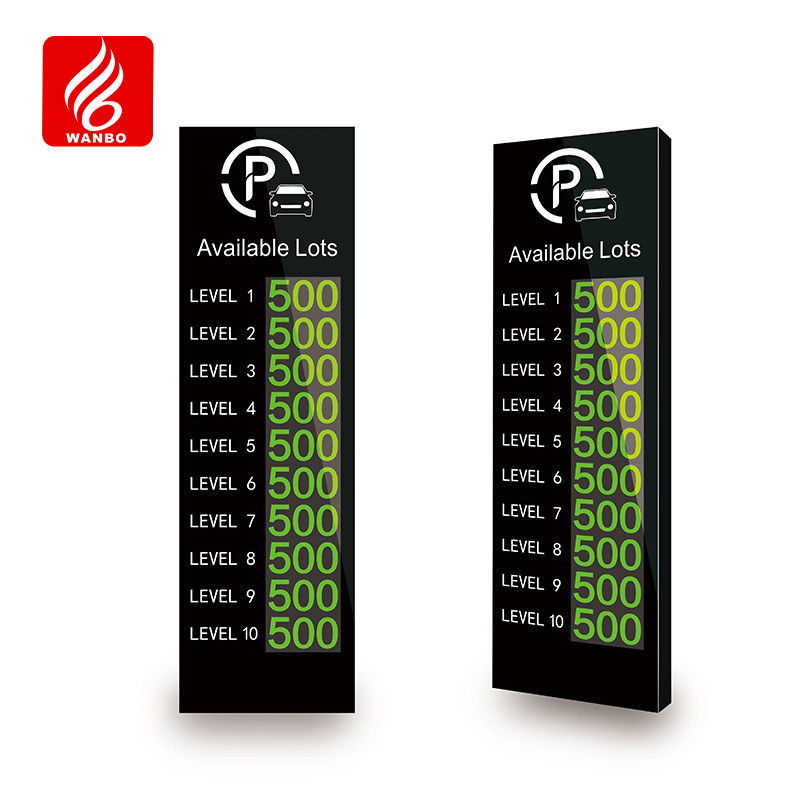

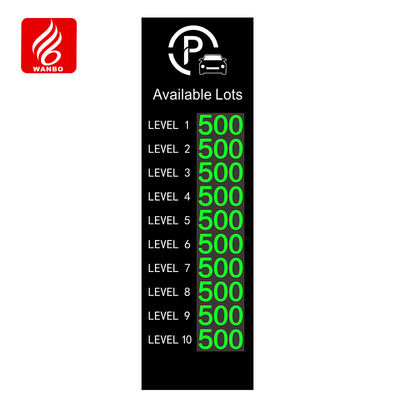

   The outdoor guide screen is an essential tool for efficient parking lot management. Constructed with a high brightness LED

module, a reliable drive circuit, a sturdy bracket and other parts, it's designed to perform consistently. Situated at every entrance

of the parking lot, its main function is to display the real-time number of remaining parking spaces. This enables drivers to

quickly know where to park as they enter, reducing search time and traffic congestion within the lot. Operating around the clock,

it endures various outdoor conditions while always being ready to serve. Its durable build and accurate display make it a

dependable feature, playing a crucial role in enhancing the overall parking experience for users.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
