Name: Guidance Screen WBPOA31N Outdoor Wired Guide Screen Drive Unit Bracket IP65
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-OA31-N
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-OA31-N
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-OA31-N

Vertical Pole Size:

1200mm

Appearance Material:

Aluminum Alloy Outer Frame

Illuminant:

Red,green

Levels Of Protection:

IP65

Working Temperature:

- 40℃ ~ +85℃

Working Voltage:

AC 110～240V

Power Dissipation:

15W (one-way)

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

240V guidance screen

110V guidance screen

IP65 signage park

Product Description

Parking Signage WBPOA31N Outdoor Wired Guide Screen Drive Unit, Bracket And Other Parts IP65

Parameter

Model:	WBP-OA31-N
Box Size:	690 * 210 * 65mm (single layer)
	690 * 370 * 65mm (double-layer)
	690 * 530 * 65mm (three layers)
Vertical pole size:	1200mm
Appearance material:	Aluminum alloy outer frame
illuminant:	red green
Levels of Protection:	IP65
Working Temperature:	- 40℃ ~ +85℃
Working Voltage:	AC 110～240V
Power Dissipation:	15 W (one-way)
Ambient Humidity	90% RH (no condensation)
Communication Mode:	RS485
Communication Distance:	≤300m
Individual Digital Display Dimensions	160*160 mm
P10 Module Size	160*320mm

Table 3.1 Technical Parameters Table of outdoor wired guide screen

Product Description

The outdoor guide screen, a significant element in parking lot management, is installed at crucial fork roads within the lot. It's

made up of a high brightness P10 module, a drive unit, a sturdy bracket, and other components. This screen connects with the

outdoor centralized controller to receive its output information. Then, it presents the number of vacant parking spaces in the

area through numbers and arrows, effectively guiding vehicle owners to swiftly locate empty spots. This not only ensures a

smooth traffic flow in the parking lot but also maximizes the utilization of parking spaces. Moreover, we offer customization

options for one-way, two-way, or three-way outdoor guide screens to meet diverse requirements.

Product features:

1) The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;

2) The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;

3) The guide screen has short circuit, overvoltage, overcurrent, overload protection;

4) Red and green two color instructions can be clearly recognizable, high luminous intensity, visible distance, can be wide perspective.

Product installation

The outdoor wired guide screen is installed in the column mode, and the power cord is connected nearby and introduced into the guide screen box. The installation diagram is shown in Figure 4.1:

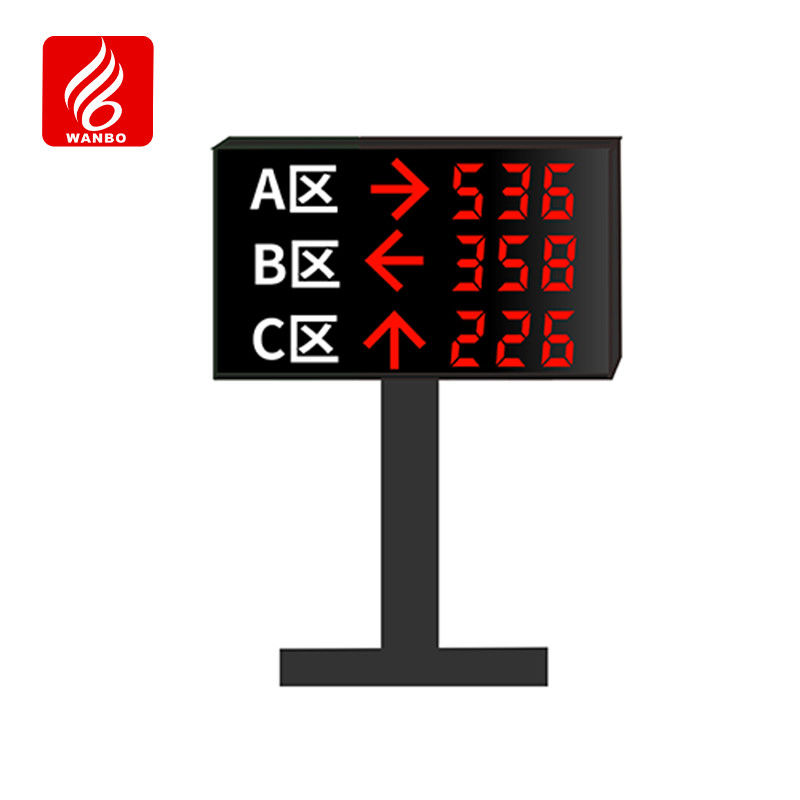

Guidance Screen WBPOA31N Outdoor Wired Guide Screen Drive Unit Bracket IP65 1 Figure 4.1 Installation diagram of outdoor wired guide screen
