Home / Products / Parking Signage /

Parking Signage WBPOA31DW3 Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65

Name: Parking Signage WBPOA31DW3 Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-OA31DW-3
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-OA31DW-3
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-OA31DW-3

Vertical Pole Size:

1200mm

Appearance Material:

Aluminum Alloy Outer Frame

Illuminant:

Red,green

Levels Of Protection:

IP65

Working Temperature:

- 40℃ ~ +85℃

Working Voltage:

AC 110～240V

Power Dissipation:

15W (one-way)

Supply Ability:

1 ~ 5000 piece 30days

Product Description

WBP-OA31DW-3 Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65

Parameter

Model:	WBP-OA31DW-3 (three-layer)
Box Size:	690 * 210 * 65mm (single layer)
	690 * 370 * 65mm (double-layer)
	690 * 530 * 65mm (three layers)
Vertical pole size:	1200mm
Appearance material:	Aluminum alloy outer frame
illuminant:	red green
Levels of Protection:	IP65
Working Temperature:	- 40℃ ~ +85℃
Working Voltage:	AC 110～240V
Power Dissipation:	15 W (one-way)
Ambient Humidity	90% RH (no condensation)
Communication Mode:	RS485
Communication Distance:	≤300m
Individual Digital Display Dimensions	160*160 mm
P10 Module Size	160*320mm

Table 3.1 Technical Parameters Table of outdoor wired guide screen

Product Description

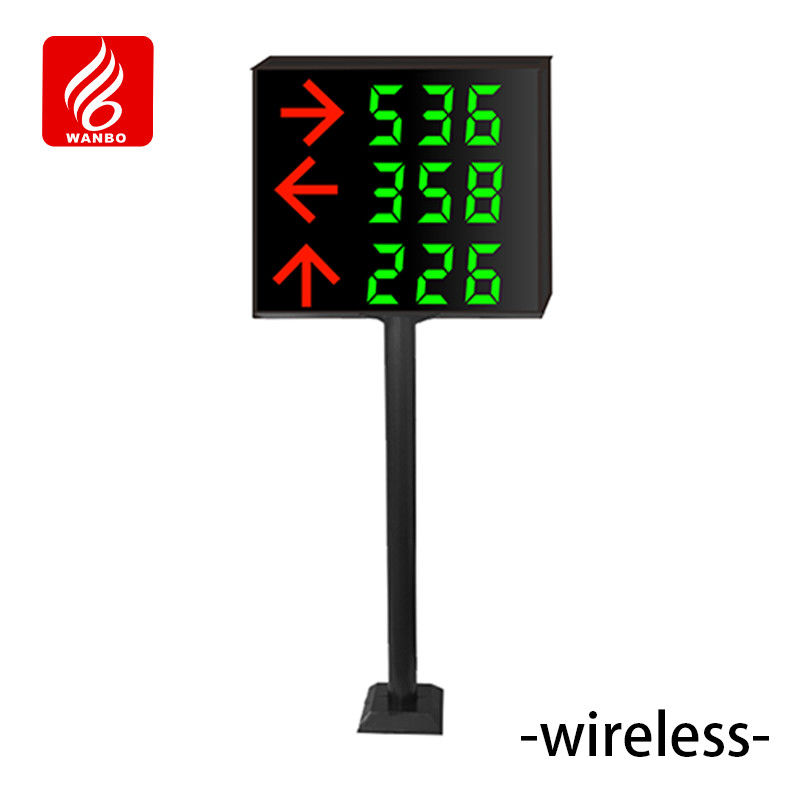

The outdoor guide screen, a vital component in parking lot management, is strategically placed at key fork roads within the lot It comprises a high brightness P10 module, drive unit, bracket, and other integral parts. This screen is designed to receive

output information from the outdoor centralized controller. By presenting the number of vacant parking spaces in the area via

numbers and arrows, it efficiently guides vehicle owners to quickly locate empty spaces. This ensures the parking lot runs

smoothly and spaces are fully utilized. Moreover, we provide customization options for one-way, two-way, and three-way

outdoor guide screens to adapt to diverse requirements and enhance functionality. Parking Signage WBPOA31DW3 Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65 0

Product features:

1) The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;

2) The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;

3) The guide screen has short circuit, overvoltage, overcurrent, overload protection;

4) Red and green two color instructions can be clearly recognizable, high luminous intensity, visible distance, can be wide perspective.

Product installation

The outdoor wired guide screen is installed in the column mode, and the power cord is connected nearby and introduced into the guide screen box. The installation diagram is shown in Figure 4.1:

Parking Signage WBPOA31DW3 Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65 1 Figure 4.1 Installation diagram of outdoor wired guide screen
