Home / Products / Parking Signage /

Parking Signage WBPOA31D1D Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65

Name: Parking Signage WBPOA31D1D Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-OA31D-1D
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-OA31D-1D
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，China

Model:

WBP-OA31D-1D

Vertical Pole Size:

1200mm

Appearance Material:

Aluminum Alloy Outer Frame

Illuminant:

Red,green

Levels Of Protection:

IP65

Working Temperature:

- 40℃ ~ +85℃

Working Voltage:

AC 110～240V

Power Dissipation:

15W (one-way)

Supply Ability:

1 ~ 5000 piece 30days

Product Description

WBP-OA31D-1D Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65

Parameter

Model:	WBP-OA31D-1D (single-layer)
Box Size:	690 * 210 * 65mm (single layer)
	690 * 370 * 65mm (double-layer)
	690 * 530 * 65mm (three layers)
Vertical pole size:	1200mm
Appearance material:	Aluminum alloy outer frame
illuminant:	red green
Levels of Protection:	IP65
Working Temperature:	- 40℃ ~ +85℃
Working Voltage:	AC 110～240V
Power Dissipation:	15 W (one-way)
Ambient Humidity	90% RH (no condensation)
Communication Mode:	RS485
Communication Distance:	≤300m
Individual Digital Display Dimensions	160*160 mm
P10 Module Size	160*320mm

Table 3.1 Technical Parameters Table of outdoor wired guide screen

Product Description

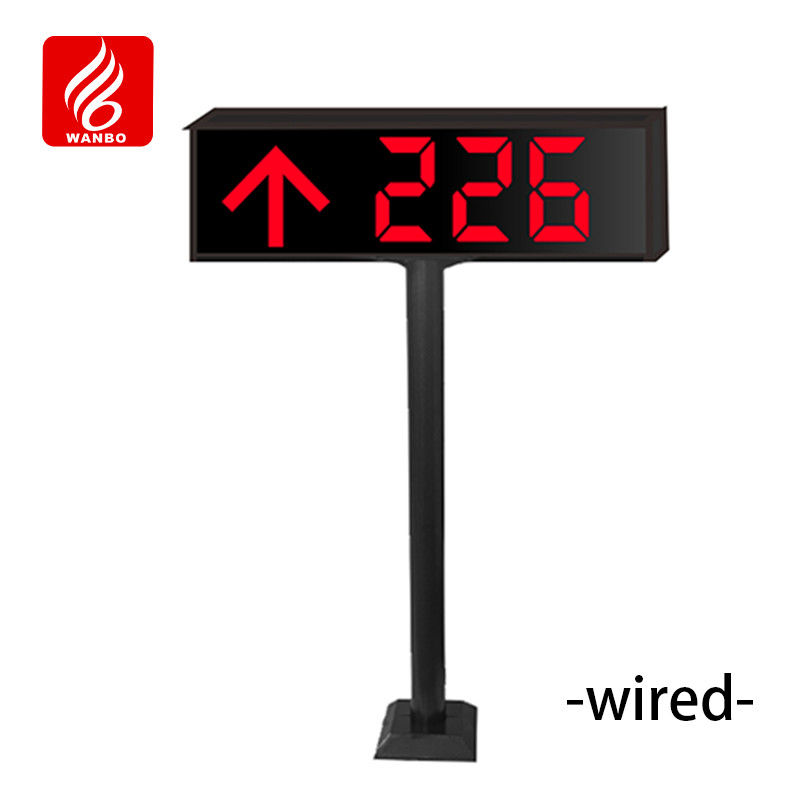

The outdoor guide screen, a significant asset for parking lot operations, is strategically positioned at key fork roads within the

lot. It consists of a high brightness P10 module, a drive unit, a bracket, and other essential components. This screen interfaces

with the outdoor centralized controller to receive its output data. Then, it effectively conveys the quantity of empty parking

spaces in the area through numbers and arrows, helping vehicle owners swiftly identify available spots. This not only maintains

the smooth running of the parking lot but also maximizes space utilization. Additionally, we provide customization options for

one-way, two-way, and three-way outdoor guide screens to meet diverse user needs. Parking Signage WBPOA31D1D Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65 0

Product features:

1) The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;

2) The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;

3) The guide screen has short circuit, overvoltage, overcurrent, overload protection;

4) Red and green two color instructions can be clearly recognizable, high luminous intensity, visible distance, can be wide perspective.

Product installation

The outdoor wired guide screen is installed in the column mode, and the power cord is connected nearby and introduced into the guide screen box. The installation diagram is shown in Figure 4.1:

Parking Signage WBPOA31D1D Outdoor Wired Guide Screen Drive Unit Bracket And Other Parts IP65 1 Figure 4.1 Installation diagram of outdoor wired guide screen
