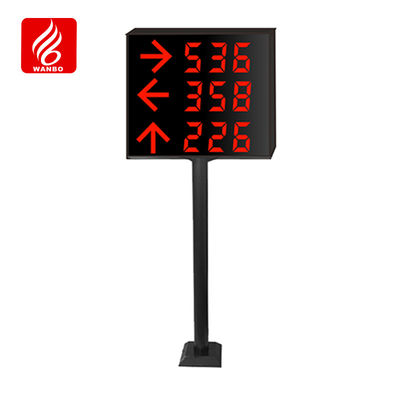

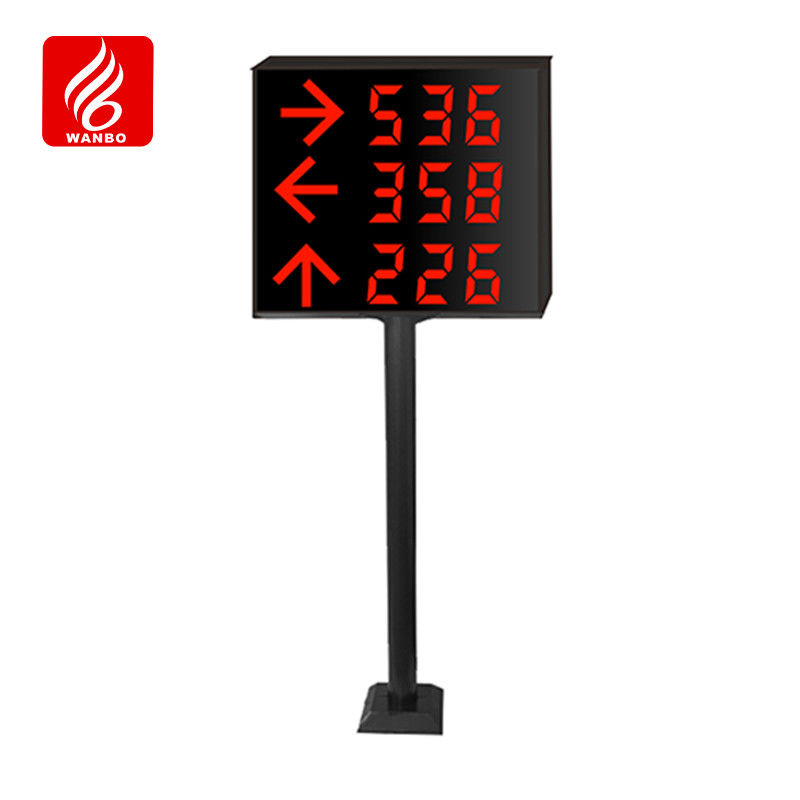

WBPOA313 Parking Signage Outdoor Wired Guide Screen Drive Unit Bracket IP65

Name: WBPOA313 Parking Signage Outdoor Wired Guide Screen Drive Unit Bracket IP65
Brand: Shenzhen Wanbo Technology Co., Ltd.
SKU: WBP-OA31-3
Price: 55.00 USD
Availability: InStock

Brand Name:	wanbo
Model Number:	WBP-OA31-3
MOQ:	1Set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	1 ~ 5000 piece 30days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

WBP-OA31-3

Vertical Pole Size:

1200mm

Appearance Material:

Aluminum Alloy Outer Frame

Illuminant:

Red

Levels Of Protection:

IP65

Working Temperature:

- 40℃ ~ +85℃

Working Voltage:

AC 110～240V

Power Dissipation:

15W (one-way)

Reflective:

Yes

Usage:

Outdoor

Installation:

Easy To Install

Size:

18 Inches X 12 Inches

Language:

English

Visibility:

Highly Visible

Supply Ability:

1 ~ 5000 piece 30days

Highlight:

Parking Signage IP65

IP65 Parking Signage

IP65 park wayfinding signage

Product Description

WBP-OA31-3 Outdoor Wired Guide Screen Drive Unit, Bracket And Other Parts IP65

Parameter

Model:	WBP-OA31-3 (three-layer)
Box Size:	690 * 210 * 65mm (single layer)
	690 * 370 * 65mm (double-layer)
	690 * 530 * 65mm (three layers)
Vertical pole size:	1 2 00mm
Appearance material:	Aluminum alloy outer frame
illuminant:	red
Levels of Protection:	IP65
Working Temperature:	- 40℃ ~ +85℃
Working Voltage:	AC 110～240V
Power Dissipation:	15 W (one-way)
Ambient Humidity	90% RH (no condensation)
Communication Mode:	RS485
Communication Distance:	≤300m
Individual Digital Display Dimensions	160*160 mm
P10 Module Size	160*320mm

Table 3.1 Technical Parameters Table of outdoor wired guide screen

Product Description

The outdoor guide screen, strategically positioned at significant fork roads within the parking lot, is an essential component

for efficient parking management. Comprising a high brightness P10 module, drive unit, bracket and other integral parts, it

functions by receiving output data from the outdoor centralized controller. Subsequently, it vividly showcases the quantity of

vacant parking spaces in the area via numbers and arrows, facilitating vehicle owners to swiftly identify available spots. This

not only guarantees the seamless operation of the parking lot but also optimizes the utilization of parking spaces.

Customization options for one-way, two-way, and three-way outdoor guide screens are available to meet diverse requirements. WBPOA313 Parking Signage Outdoor Wired Guide Screen Drive Unit Bracket IP65 0

Product features:

1) The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;

2) The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;

3) The guide screen has short circuit, overvoltage, overcurrent, overload protection;

4) Red and green two color instructions can be clearly recognizable, high luminous intensity, visible distance, can be wide perspective.

Product installation

The outdoor wired guide screen is installed in the column mode, and the power cord is connected nearby and introduced into the guide screen box. The installation diagram is shown in Figure 4.1:

WBPOA313 Parking Signage Outdoor Wired Guide Screen Drive Unit Bracket IP65 1 Figure 4.1 Installation diagram of outdoor wired guide screen
