Specification

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture

Product Description

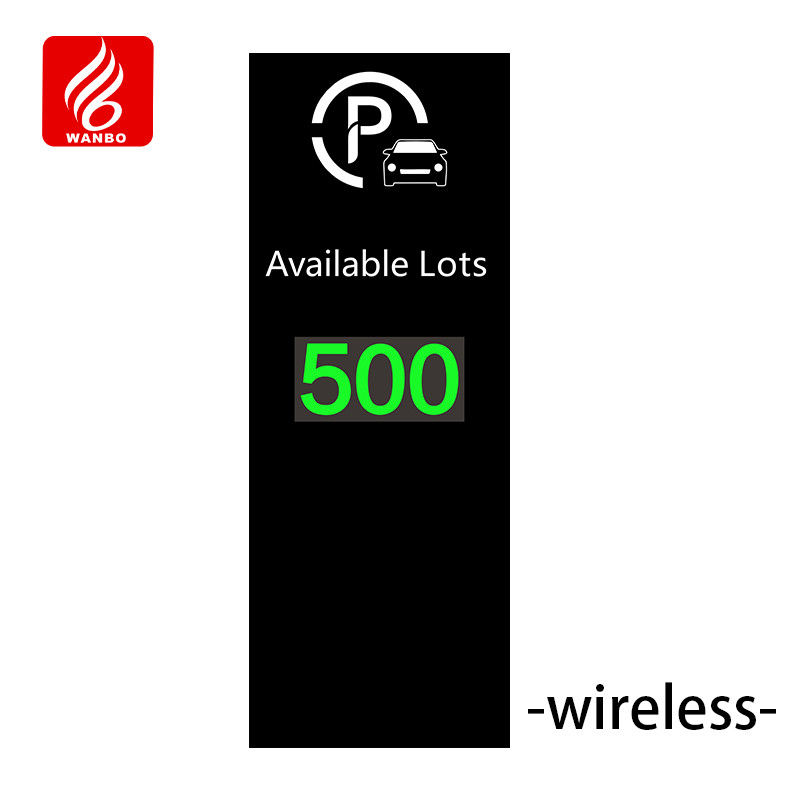

   The outdoor guide screen, a vital element in parking lot management, is structured with a high brightness LED module, drive

circuit, bracket and other components. This screen is strategically installed at every entrance of the parking lot. Its key function is

to provide real-time information on the remaining parking spaces within the lot. By constantly updating this data, it enables driver

s to quickly assess the parking availability as they arrive. Operating non-stop 24 hours a day, it ensures continuous service

regardless of the time. With its robust design and reliable components, it can endure various outdoor conditions while fulfilling

its crucial role of facilitating efficient parking and enhancing the overall functionality of the parking lot.

.

Product Features

• The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
• The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
• The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
• Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

Figure 4.1 Installation diagram of outdoor guide large screen

Case picture
