Home / Products / Parking Signage /

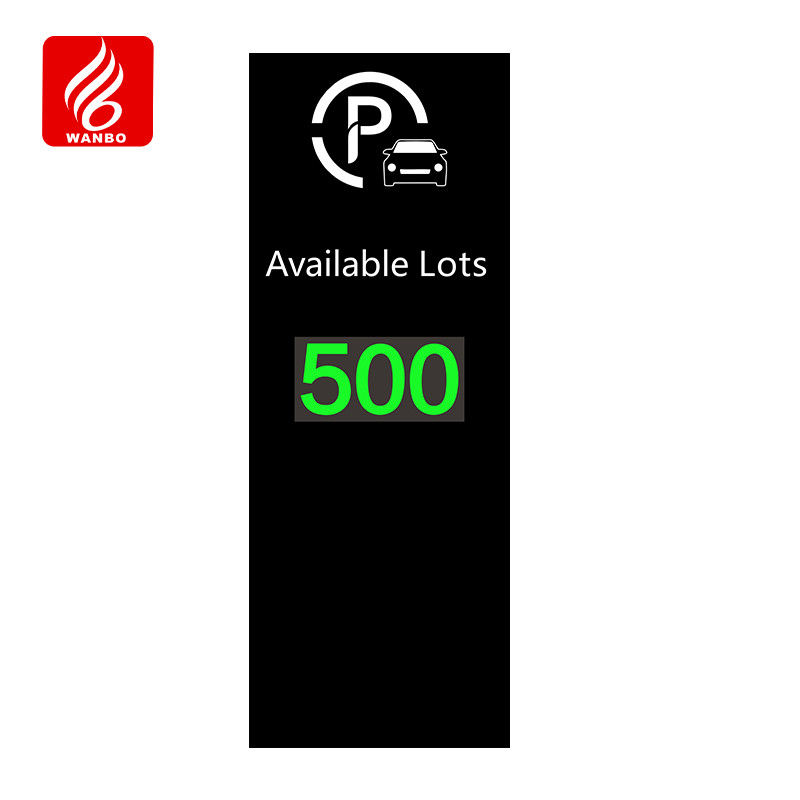

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM

Brand Name: wanbo
Model Number: WBP-VA3N-1
MOQ: 1Set
Price: US $55
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model:
WBP-VA3N-1 (single-layer)
Size:
800*160*2200mm
Levels Of Protection:
IP65
Supports The Display Number:
Three Or Four
Illuminant:
Red / Green Highlighted LED
Working Voltage:
AC 110～240V
Working Temperature:
-30℃ ~ +75℃
Supply Ability:
1 ~ 5000 piece 30days
Highlight:

Parking Signage ODM

,

Outdoor Parking Signage

,

Large guidance display

Product Description

Parking Signage WBP-VA3N-1 Outdoor Parking Large Guidance Screen OEM ODM

Specification



Model: WBP-VA3N-1 (single-layer)
Size: 800*160*2200mm
Levels of Protection: IP65
Supports the Display Number Three or four
illuminant: Red / green highlighted LED
Appearance Material: Cold steel baking paint + tempered glass panel
Working Voltage: AC 110～240V
Working Temperature: -30℃ ~ +75℃
Ambient Humidity: 90% RH (no condensation)
Power Dissipation: 15W (single layer)
Communication Mode: RS485
Communication Distance: ≤ 300 m


Table 3.1 Technical Parameters Table of outdoor guided large screen



System architecture

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM 0



Product Description

 The outdoor guide screen, an essential element for parking lots, is made up of a high brightness LED module, drive circuit,

bracket and other parts. Positioned at each entrance, it serves the key function of presenting the real-time number of remaining

parking spaces in the lot. Operating round the clock, it ensures smooth parking operations.

.WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM 1



Product Features

  • The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
  • The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
  • The guide screen adopts low power consumption design, simultaneously with short circuit, overvoltage, overcurrent and overload protection;
  • Red and green two color indication is clearly recognizable, high luminous intensity, visible distance, can be wide perspective;

Product installation

   The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM 2

Figure 4.1 Installation diagram of outdoor guide large screen



Case picture

WBPVA3N1 Parking Signage Outdoor Parking Large Guidance Screen OEM ODM 3
