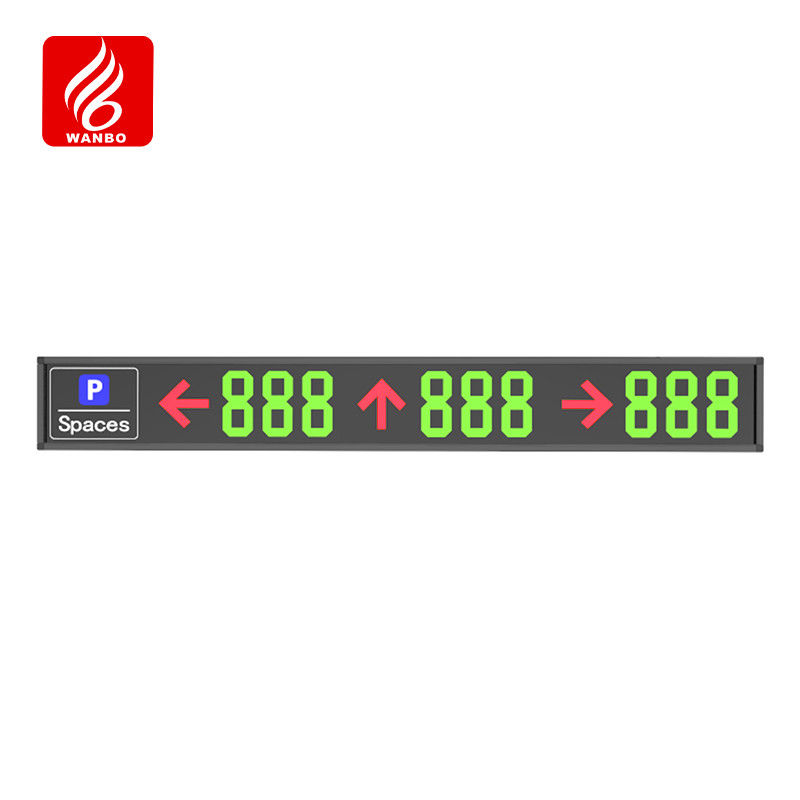

Parking Signage IA31D3 Red Green Threeway Indoor Guidance Screen Guidance Display

Table 3.1 Technical parameters of the indoor boot screen

The standard red-green dual-color indoor three-way guidance screen is ingeniously constructed, integrating a high-brightness LED module, a precisely calibrated drive unit, a sturdy support structure, and other essential components. It is strategically placed at pivotal three-way intersections and high-traffic turnover zones within the parking lot. This state-of-the-art screen is designed to receive the real-time output information transmitted by the centralized controller. Subsequently, it vividly presents the quantity of vacant parking spaces in the relevant area through a combination of conspicuous numbers, directional arrows, and other intuitive visual cues. Regardless of whether drivers are approaching from the left, right, or straight ahead, it efficiently steers them to promptly identify unoccupied parking spots, thereby ensuring the seamless operation and fluid traffic flow throughout the parking lot and maximizing the full utilization of every available parking space. This three-way guidance screen not only streamlines the parking process but also contributes to a more orderly and efficient parking environment, significantly enhancing the overall parking experience.

• Product features

1) The standard red-green dual-color indoor three-way guidance screen features a meticulously crafted black aluminum alloy frame. Its refined design not only imparts a sense of simplicity but also exudes an air of grandeur, making it a visually striking addition to any indoor parking space. This sleek frame effortlessly complements the surrounding environment while enhancing the overall aesthetic appeal.

2) Engineered with a state-of-the-art low power consumption design, this three-way guidance screen is fortified with comprehensive safeguards. It comes equipped with short-circuit protection, overvoltage protection, overcurrent protection, and overload protection, ensuring its reliable and uninterrupted operation even in the face of power fluctuations. This robust protection mechanism not only prolongs the lifespan of the screen but also provides peace of mind to facility managers and users alike.

3) Boasting exceptional versatility, this screen offers advanced multi-direction display capabilities. It can be precisely calibrated to cater to the unique requirements of a vast array of intersection types. Whether it's a complex three-way junction with multiple lanes or a more straightforward layout, it can project clear and accurate guidance from all three directions, effectively streamlining traffic flow and reducing congestion.

4) The green indication on the screen is meticulously engineered for maximum clarity and instant recognition. The high-intensity lamp beads incorporated possess an outstanding luminous intensity, translating into an impressively long viewing distance. Paired with a wide viewing angle, drivers approaching from any of the three directions can effortlessly spot the crucial guidance information, even under challenging lighting conditions such as bright sunlight or dimly lit corners. This ensures that the guidance screen remains highly effective and visible at all times, guiding drivers with precision to their desired parking spots.

• Product installation and wiring

  The indoor guide screen is installed by ceiling hoisting, and the power and signal cables are directly led from the bridge to the guide panel box using metal hoses. The installation diagram is shown in Figure 4.1:

• Case Images
