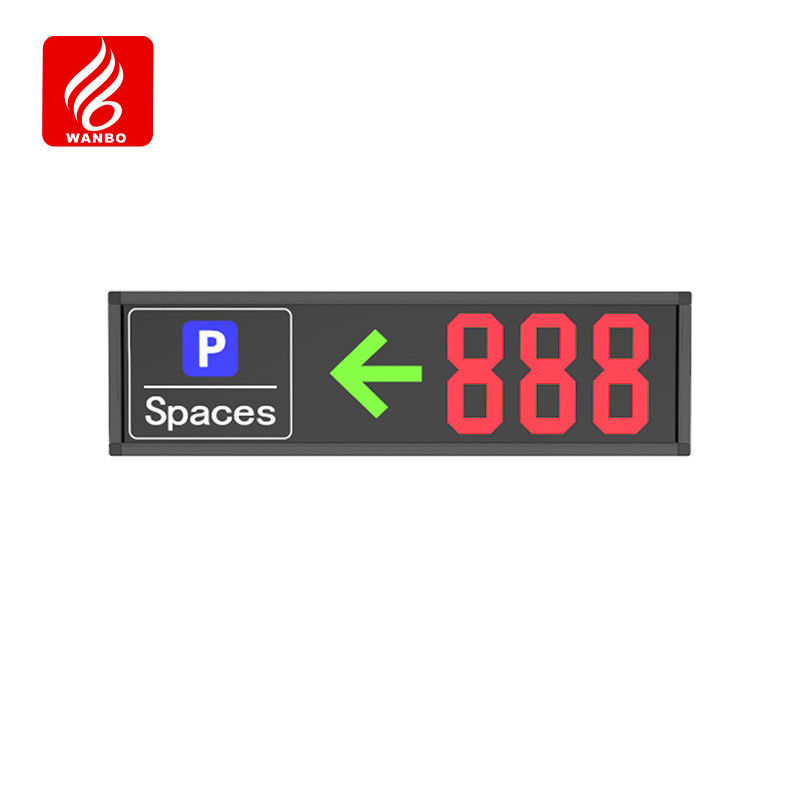

Parking Signage IA31D1 Red Green Oneway Indoor Guidance Screen Guidance Display

Table 3.1 Technical parameters of the indoor boot screen

The standard red-green dual-color indoor one-way guidance screen is constructed with a high-brightness LED module, a precisely calibrated drive unit, a reliable support structure, and several other essential components. It is strategically positioned at crucial traffic transition points within the parking lot. This screen is designed to receive the output data transmitted by the centralized controller. Subsequently, it vividly presents the number of vacant parking spaces in the corresponding area by means of a combination of conspicuous numbers, directional arrows, and other intuitive visual cues. Through this, it efficiently directs vehicle owners in a single direction to swiftly identify unoccupied parking spots, thereby guaranteeing the unimpeded traffic flow throughout the parking lot and facilitating the optimal utilization of available parking spaces.

• Product features

1) The standard red-green dual-color indoor one-way guidance screen features a black aluminum alloy frame, which endows it with a sleek and sophisticated look. Its minimalist design not only exudes an air of elegance but also seamlessly integrates into any indoor parking environment, making it a visually appealing addition.

2) Engineered with energy efficiency in mind, this guidance screen incorporates a low power consumption design. What's more, it comes equipped with a comprehensive suite of protection mechanisms, including short-circuit protection, overvoltage protection, overcurrent protection, and overload protection. These safeguards ensure its reliable and stable operation, even when faced with power fluctuations or surges, providing peace of mind to users.

3) With its advanced multi-direction display capabilities, this screen is capable of presenting content from various angles. It can be expertly customized to cater to the specific requirements of different intersection scenarios within the parking lot. Whether it's a simple T-junction or a complex multi-lane intersection, it delivers clear and accurate guidance to drivers, enhancing traffic flow and safety.

4) The green indication on the screen is meticulously designed for maximum clarity and instant recognition. The high-intensity lamp beads utilized boast an impressive luminous intensity, which translates into a remarkably long viewing distance. Coupled with a wide viewing angle, drivers approaching from different directions can easily spot the crucial guidance information, even in less than ideal lighting conditions such as dimly lit areas or under bright sunlight. This ensures that the guidance screen remains highly effective and visible at all times.

Product installation and wiring

  The indoor guide screen is installed by ceiling hoisting, and the power and signal cables are directly led from the bridge to the guide panel box using metal hoses. The installation diagram is shown in Figure 4.1:

Case Images

Parking Signage IA31D1 Red green oneway Indoor guidance screen guidance Display
