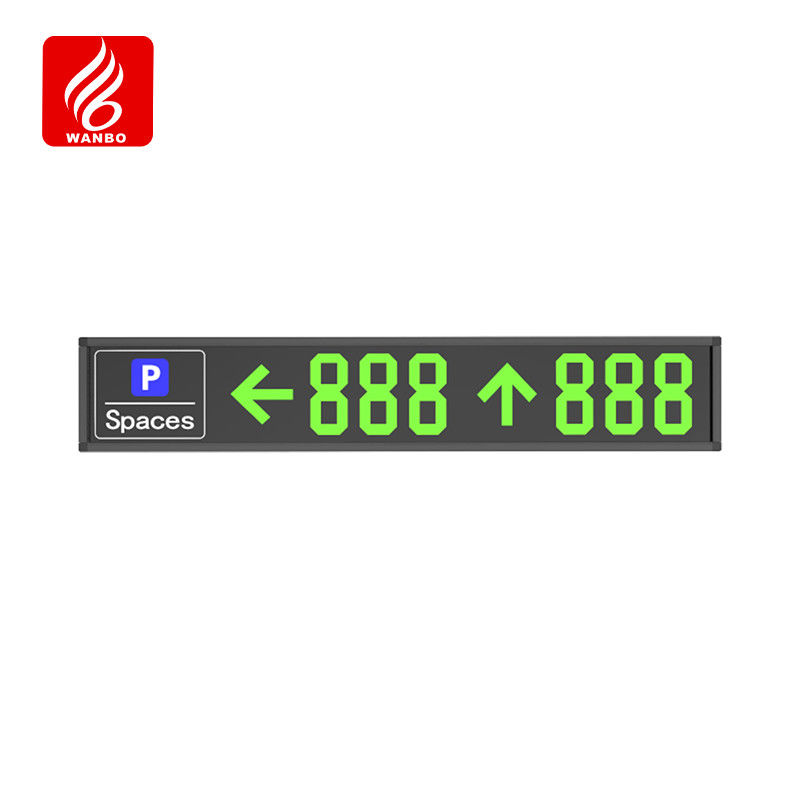

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS

Brand Name: wanbo
Model Number: WBP-IA31-2
MOQ: 1Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 1 ~ 5000 piece 30days
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE / IS09001
Product Type:
Parking Guidance
Product Name:
Indoor Guidance Screen Standard Two-way
Product Model:
WBP-IA31-2
Product Power Dissipation:
<10W(single Layer);two-way
Product Operating Voltage:
AC220V
Product Operating Temperature:
-20C~+65°C
Product Communication Mode:
RS485
Supply Ability:
1 ~ 5000 piece 30days
Product Description

Parameter

Model

WBP-IA31-2(Two-way)

Operating temperature

-30℃ ~ +65℃

Size

One-way

650*183*56mm

Supply voltage

AC220V±10

Two-way 1030*183*56mm

Maximum power consumption

≤20W(one-way)

Three-way 1410*183*56mm

Humidity

5％--95％RH

Appearance material

Black aluminum frame

Communication mode

Power carrier

Bluetooth (debugging)

Empty parking space

Screen printing LED white luminous characters

Communication distance

powerbus≤130m

Bluetooth≤5M

Light source

Red and green LED light beads

Pixel density

44321 point/㎡

Dot spacing

4.75 mm

Resolution ratio

80*32=2560 point

Life

≥100,000 hours

Drive mode

constant current


Table 3.1 Technical parameters of the indoor boot screen

Product Description

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS 0



The indoor guidance screen is composed of a high-brightness LED module, a drive unit, a support, and other parts. It is installed at important intersections within the parking lot. This is a two-way screen that receives the output information from the centralized controller and displays the number of empty parking spaces in the area in various forms such as numbers and arrows. It guides the vehicle owners to quickly locate the available parking spaces, thereby ensuring the smooth flow of traffic within the parking lot and the full utilization of parking spaces.

Product features

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS 1

  1. The guide screen features a black aluminum alloy frame, giving it a simple yet elegant appearance.
  2. The guide screen is designed with low power consumption and is equipped with short circuit, overvoltage, overcurrent, and overload protection.
  3. It supports multi-directional display of content, which is suitable for use at various intersections.
  4. The green indication is clear and easily recognizable, and the lamp bead has high luminous intensity, a long viewing distance, and a wide viewing angle.

Product installation and wiring

  The indoor guide screen is installed by ceiling hoisting, and the power and signal cables are directly led from the bridge to the guide panel box using metal hoses. The installation diagram is shown in Figure 4.1:

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS 2Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS 3



Case Images

Parking Signage IA31 Twoway Indoor Guidance Screen Standard Twoway Display 485 LED PGS 4



Parking Signage IA31 Indoor guidance screen standard twoway Display 485 LED PGS
